BMT55 RADIAL DRILLING MILLING HEAD DOUBLE 2xER25 L= 85 mm for VICTOR VTURN A20 A16
BMT55 RADIAL DRILLING MILLING HEAD DOUBLE 2xER25 L= 85 mm for VICTOR VTURN A20 A16

BMT55 RADIAL DRILLING MILLING HEAD DOUBLE 2xER25 L= 85 mm for VICTOR VTURN A20 A16

CAD $5,099.00

SKU: IMT201238 Brand: ,

IMT201238 / L30000679

Product Parameters

Tool Holder Turret Interface:

  • Turret: RADIAL
  • Bolt Pattern: 64×64 mm / BMT-55
  • Power Coupling: DIN1809 VICTOR VTURN

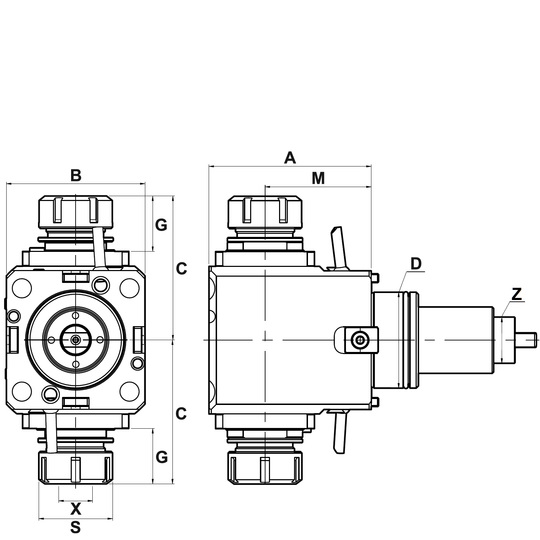

IMTE No. Part No. D X
ER Capacity		 S Max.speed
(R.P.M.)		 A B C G M Z
IMT201237 DW230-DF55-ER25-70D-Z 55 1~16 ER25 42 5000 105 85 91 31 70 29
IMT201238 DW230-DF55-ER25-85D-Z 120 85 91 31 85 29
IMT201239 DW300-DF65-ER32-72D-Z 65 2~20 ER32 50 5000 110 94 98 38 72 29
IMT201240 DW300-DF65-ER32-85D-Z 123 94 98 38 85 29
IMT201241 DW300-DF65-ER32-100D-Z 138 94 98 38 100 29
For the detailed list of compatible machine models – please click the Compatible Machines tab
