Product Parameters

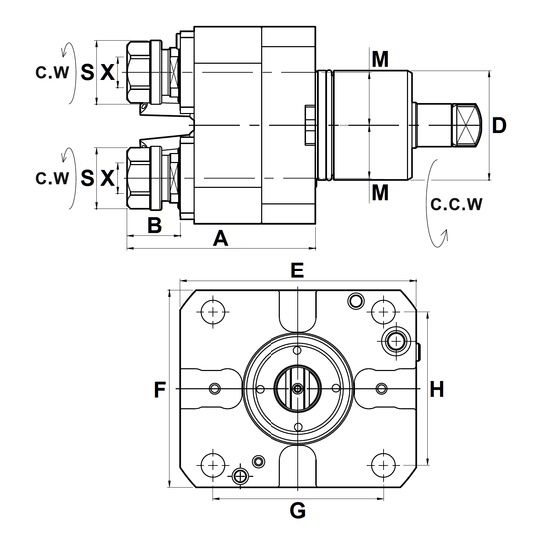

| IMTE No. | Part No. | D | X Capacity |
S | Max.speed R.P.M. |
A | B | E | F | Bolt Pattern | M | |
| G | H | |||||||||||
| IMT203010 | NL1500-DA60-ER20DY | 60 | 1~13 ER20 | 35 | 6000 | 104 | 29 | 130 | 108 | 94 | 84 | 29 |
| IMT203011 | NL1500-DA60-ER25DY | 1~16 ER25 | 42 | 110 | 35.5 | |||||||
Unless otherwise specified, all dimensions are in millimeters
