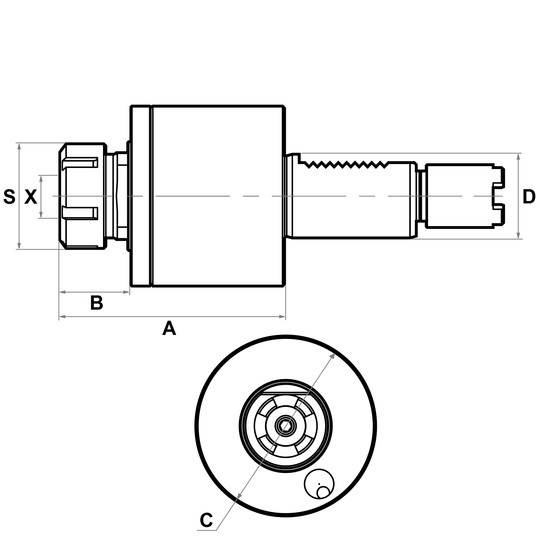

Product Parameters
| IMTE No. | Part No. | D | X Capacity |
S | Rotation Speed (R.P.M.) |
Gear Ratio |
A | B | C |
| IMT100882 | HAAS-TDA40-20-104 | 40 | 1~13 ER20 | 35 | 3000 | 1 : 1 | 114.5 | 74.5 | 86 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
