MAZAK V-TYPE AXIAL DRILLING MILLING HEAD ER25 L=119 mm for MAZAK MP420 MP620
MAZAK V-TYPE AXIAL DRILLING MILLING HEAD ER25 L=119 mm for MAZAK MP420 MP620

MAZAK V-TYPE AXIAL DRILLING MILLING HEAD ER25 L=119 mm for MAZAK MP420 MP620

CAD $2,178.00

SKU: IMT201054 Brand:

IMT201054 / L30000996

Product Parameters

Tool Holder Turret Interface:

  • Tooling Interface: MP420N/620N/625N/620(12)/6200(12)-40
  • Power Coupling: MAZAK MP620 (REGULAR)

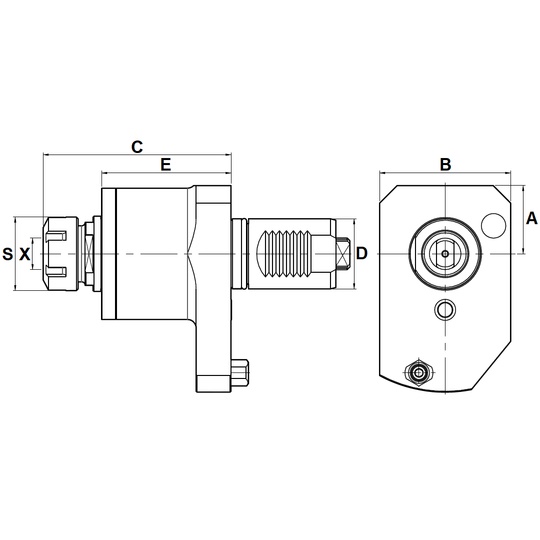

IMTE No. Part No. D X
Capacity		 S Maximum
R.P.M.		 A B C E CNC Lathe
IMT201054 5347202 40 1~16 ER25 42 6000 40 80 119 82.6 MAZAK MULTIPLEX MP420N-12D
MAZAK MULTIPLEX MP620N-12D
MAZAK MULTIPLEX MP620-12D
MAZAK MULTIPLEX MP6200-12D
IMT201055 5347201 2~20 ER32 50 40 80 120 82.6
For the detailed list of compatible machine models – please click the Compatible Machines tab
