Product Parameters
Tool Holder Turret Interface:
- Turret: RADIAL
- Tooling Interface: BMT-BOLT PATTERN 50×60 mm

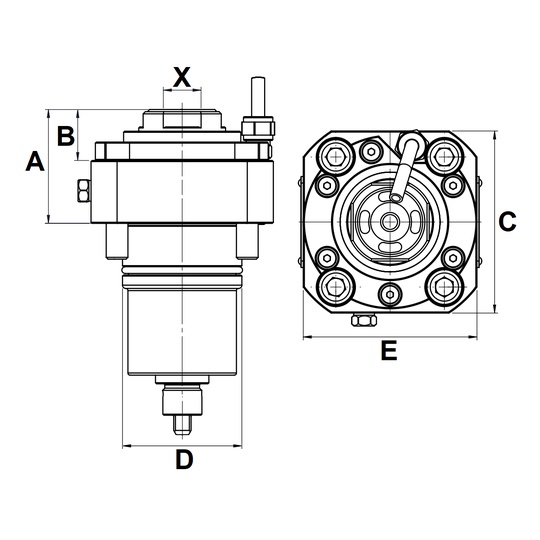

| IMTE No. | D | X | Max.speed (R.P.M.) |
A | B | C | E | CNC Lathe |
| IMT201236 | 55 | M16 | 6000 | 35 | 15 | 84 | 79 | NAKAMURA WT150 NAKAMURA WT250 NAKAMURA AS200 |
| IMT200437 | 55 | 2~16 ER25A | 6000 | 52.5 | 15 | 84 | 80 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
