Product Parameters
Tool Holder Turret Interface:
- Turret: AXIAL
- Tooling Interface: BOLT PATTERN 69×71 mm

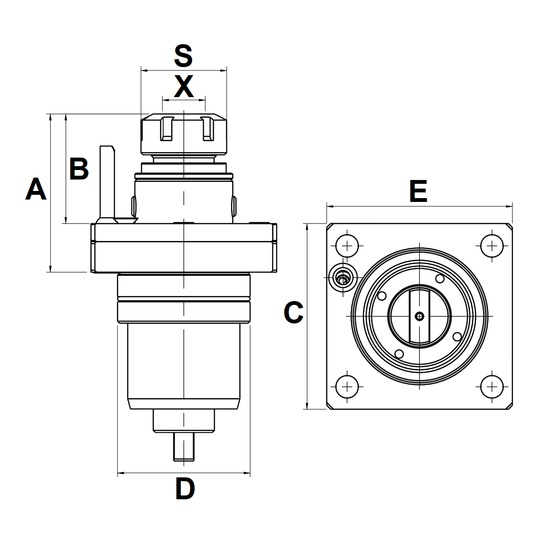

| IMTE No. | Part No. | D | X Capacity |
S | Rotation Max.speed (R.P.M.) |
A | B | C | E | CNC Lathe |
| IMT200166 | SP-WT150-DA65NA-ER25-S-QF | 65 | 1~16 ER25 | 42 | 6000 | 77.5 | 54 | 91 | 91 | NAKAMURA WT150 NAKAMURA WY250L |
For the detailed list of compatible machine models – please click the Compatible Machines tab
