Home / Tool Holders Driven (Live Tooling) / VDI Axial Drilling-Milling Head / L30000070 / VDI30 DIN5480 AXIAL DRILLING MILLING HEAD DOUBLE ER16 for Y AXIS
VDI30 DIN5480 AXIAL DRILLING MILLING HEAD DOUBLE ER16 for Y AXIS
VDI30 DIN5480 AXIAL DRILLING MILLING HEAD DOUBLE ER16 for Y AXIS

VDI30 DIN5480 AXIAL DRILLING MILLING HEAD DOUBLE ER16 for Y AXIS

CAD $3,928.64

SKU: IMT202302

IMT202302 /L30000070

Icons
  • You can buy them securely via PayPal, we also accept Mastercard, Visa and American Express.
  • We ship via UPS.
  • Description
  • Compatible Machines

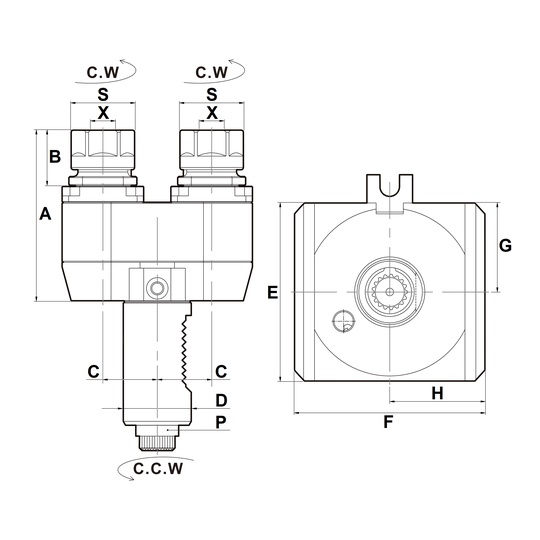

Product Parameters

IMTE No. Part No. D
DIN 69880		 X
Capacity		 S Max.Speed
R.P.M.		 A B C E F G H P
DIN 5480
IMT202302 DA30-5480-ER16-DY 30 1~10 ER16 30 4000 86 23 24 80 95 40 47.5 W16x0.8
IMT202303 DA40-5480-ER20-DY 40 1~13 ER20 35 4000 99 30 29 80 104 40 52 W20x0.8
Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab

DMG GILDEMEISTER TWIN-65 TURRET RADIAL SAUTER VDI30 DIN5480VICTOR VTURN II-26CV TURRET SAUTER VDI30 DIN5480INDEX G-300 TURRET W-TOOTH VDI30 DIN5480SCHUSTER VTM-350-FUTURELINE TURRET VDI30 DIN5480KOVOSVIT MAS SP-180SY TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-320 NO SUBSP TURRET SAUTER AXIAL VDI30 DIN5480EMCO HYPERTURN HT-665MC-PLUS RADIAL SAUTER TURRET VDI30 DIN5480LEADWELL T-6SMY TURRET VDI30 DIN5480VICTOR VTURN-A20YCV TURRET AXIAL VDI30 DIN5480FORCE ONE 2-SPINDLE 2-TURRET VDI30 DIN5480DMG GILDEMEISTER CTX ALPHA SUBSP RADIAL SAUTER TURRET VDI30 DIN5480SCHAUBLIN 65TM-6Y TURRET VDI30 DIN5480DMG GILDEMEISTER CTX ALPHA-300 DISC-TURRET AXIAL VDI30 DIN5480VICTOR VTURN-A16YSCV TURRET AXIAL VDI30 DIN5480DUPLOMATIC SMBR16-270 TURRET VDI30 DIN5480DMG GILDEMEISTER TWIN-50 RADIAL SAUTER TURRET VDI30 DIN5480VICTOR VTURN II-20YCV TURRET SAUTER VDI30 DIN5480INDEX G-160A TURRET RADIAL V-PLATE VDI30 DIN5480SCHERER FEINBAU VDZ-120L TURRET VDI30 DIN5480KOVOSVIT MAS SP-180Y TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-420 TURRET SAUTER VDI30 DIN5480EMCO HYPERTURN HT-690 TURRET VDI30 DIN5480LEADWELL T-8SMY TURRET VDI30 DIN5480KAAST F-TURN 390-500TMCY TURRET DUPLOMATIC-SMBR VDI30 DIN5480SCHAUBLIN 65 STRAIGHT-HEAD TURRET SAUTER VDI30 DIN5480DUPLOMATIC TURRET VDI30 DIN5480SPINNER UP-65SMC TURRET SAUTER VDI30 DIN5480DMG GILDEMEISTER CTX ALPHA-500 DISC-TURRET VDI30 DIN5480VICTOR VTURN-A16CV TURRET AXIAL VDI30 DIN5480DUPLOMATIC SMBR16-340 TURRET VDI30 DIN5480DOOSAN MECATEC S-310M TURRET RADIAL SAUTER VDI30 DIN5480VICTOR VTURN II-16YCV TURRET SAUTER VDI30 DIN5480INDEX V-160 TURRET W-TOOTH VDI30 DIN5480SCHERER FEINBAU VDZ-120R TURRET VDI30 DIN5480HARDINGE BRIDGEPORT SR-200MSY TURRET SAUTER AXIAL VDI30 DIN5480DMG GILDEMEISTER GM-70CNC TURRET VDI30 DIN5480EMCO MAXXTURN MT-65 TURRET RADIAL VDI30 DIN5480DMG GILDEMEISTER CTX-310ECO TURRET VDI30 DIN5480KAAST F-TURN 390-260TMCY TURRET DUPLOMATIC-SMBR VDI30 DIN5480DMG GILDEMEISTER CTX BETA-500-V6 TURRET RADIAL SAUTER VDI40 DIN5480DMG GILDEMEISTER CTX ALPHA NO SUBSP AXIAL SAUTER TURRET VDI30 DIN5480DOOSAN MECATEC Z-290SMY TURRET RADIAL SAUTER VDI30 DIN5480DMG GILDEMEISTER CTX BETA-1250-V6 TURRET RADIAL SAUTER VDI40 DIN5480VICTOR VTURN-A16SCV TURRET AXIAL VDI30 DIN5480APEX PT-16 16-TLS TURRET VDI30 DIN5480DOOSAN MECATEC S-310SM TURRET RADIAL SAUTER VDI30 DIN5480DMG GILDEMEISTER SPRINT-65-LINEAR TURRET RADIAL SAUTER VDI30 DIN5480INDEX V-250 TURRET V-STRIP VDI30 DIN5480SCHERER FEINBAU VDZ-220 TURRET SAUTER RADIAL VDI30 DIN5480XYZ COMPACT TURN CT-52 LTYDMG GILDEMEISTER MD-3iT4A TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-300 TURRET AXIAL VDI30 DIN5480DMG GILDEMEISTER CTX-410 SUBSP TURRET RADIAL SAUTER VDI30 DIN5480KAAST F-TURN 260T TURRET DUPLOMATIC VDI30 DIN5480DMG GILDEMEISTER CTX BETA-800-V6 TURRET RADIAL SAUTER VDI40 DIN5480SAUTER TURRET RADIAL VDI30 DIN5480 0.5.450.2 W16x0.8x30x18/9bEMCO EMCOTURN ET-345II TURRET AXIAL DUPO VDI30 DIN5480 (AFT.2004)DMG GILDEMEISTER MF SPRINT-42 TURRET VDI30 DIN5480VICTOR VTURN-A16SV TURRET VDI30 DIN5480APEX PT-16 12-TLS TURRET VDI30 DIN5480DOOSAN MECATEC S-310SLM TURRET RADIAL SAUTER VDI30 DIN5480WEILER DZ-67V3 TURRET SAUTER RADIAL VDI30 DIN5480INDEX V-250 TURRET W-TOOTH VDI30 DIN5480GRAZIANO CTX-300-TWIN-V3-Y DBL-SPINDLE TURRET VDI30 DIN5480XYZ COMPACT TURN CT-65 LTYDMG GILDEMEISTER MF SPRINT-65 RADIAL SAUTER TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-320 SUBSP TURRET RADIAL SAUTER VDI30 DIN5480VICTOR VTURN II-16CV TURRET SAUTER VDI30 DIN5480KAAST F-TURN 390-470TMCY TURRET DUPLOMATIC-SMBR VDI30 DIN5480DMG GILDEMEISTER MD-7iC TURRET VDI50 DIN5481WEILER DZ-65 TURRET VDI30 DIN5480EMCO HYPERTURN HT-645 TURRET RADIAL EMCO VDI30 DIN5480DMG GILDEMEISTER SPRINT-32 TURRET VDI30 DIN5480VICTOR VTURN-A16YCV TURRET AXIAL VDI30 DIN5480HAISHU CNC-250A TURRET VDI30 DIN5480DOOSAN MECATEC S-240LM TURRET RADIAL SAUTER VDI30 DIN5480SCHERER FEINBAU VDZ-120DS TURRET SAUTER RADIAL VDI30 DIN5480INDEX V-300 TURRET W-TOOTH VDI30 DIN5480GRAZIANO CTX-300 SUBSP TURRET SAUTER RADIAL VDI30 DIN5480PLT PHL-42AL SAUTER TURRET VDI30 DIN5480DMG GILDEMEISTER MF TWIN-42 RADIAL SAUTER TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-320-V3 UNIVERSAL-TURRET VDI30 DIN5480VICTOR VTURN II-20CV TURRET SAUTER VDI30 DIN5480KAAST F-TURN 300T TURRET DUPLOMATIC VDI30 DIN5480MONFORTS DNC-3 TURRET RADIAL SAUTER VDI30 DIN5480EMCO HYPERTURN HT-665 TURRET RADIAL EMCO VDI30 DIN5480LEADWELL T-6MY TURRET DUPLOMATIC VDI30 DIN5480VICTOR VTURN-A20YSCV TURRET AXIAL VDI30 DIN5480HAISHU CNC-150A TURRET VDI30 DIN5480DOOSAN Z-290SMY DBL-TURRET SAUTER VDI30 DIN5480SCHERER FEINBAU VDZ-200 TURRET SAUTER RADIAL VDI30 DIN5480NILES-SIMMONS NF-13 TURRET RADIAL SAUTER VDI30 DIN5480GRAZIANO GT-400-SUBSP TURRET RADIAL SAUTER VDI30 DIN5480POLYGIM PLG-60 TURRET VDI30 DIN5480DMG GILDEMEISTER MF TWIN-65 RADIAL SAUTER TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-320-V6 DOUBLE-TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-410-V3 TURRET VDI30 DIN5480DUPLOMATIC SMBA16-340 TURRET VDI30 DIN5480DMG GILDEMEISTER TWIN-70 RADIAL SAUTER TURRET VDI30 DIN5480FORTUNE VTURN II-16YCV TURRET RADIAL SAUTER VDI30 DIN5480HARDINGE GS-200M TURRET RADIAL VDI30 DIN5480VICTOR VTURN-A20SV TURRET VDI30 DIN5480HAISHU CNC-250B TURRET RADIAL VDI30 DIN5480DOOSAN MECATEC Z-290M TURRET RADIAL SAUTER VDI30 DIN5480FORCE ONE FCL-15TT TURRET DUPLOMATIC RADIAL VDI30 DIN5480NILES-SIMMONS NF-16 TURRET RADIAL SAUTER VDI30 DIN5480ANGELINI ZENIT TURRET VDI30 DIN5480POLYGIM PLG-52 TURRET VDI30 DIN5480GRAZIANO CTX-320 V4-V6 TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-400E TURRET SAUTER VDI30 DIN5480DMG GILDEMEISTER CTX-320 TURRET AXIAL SAUTER VDI30 DIN5480LIO SHING TURRET LS-160SP AXIAL VDI30 DIN5480DMG GILDEMEISTER TWIN-102 RADIAL SAUTER TURRET VDI30 DIN5480FORTUNE VTURN II-20YCV TURRET RADIAL SAUTER VDI30 DIN5480INDEX G-250 TURRET V-STRIP VDI30 DIN5480VICTOR VTURN-A20SCV TURRET AXIAL VDI30 DIN5480HAISHU CNC-150B TURRET RADIAL VDI30 DIN5480DOOSAN MECATEC Z-290SM TURRET RADIAL SAUTER VDI30 DIN5480EMCO EMCOTURN ET-465TCM SAUTER TURRET VDI30 DIN5480NILES-SIMMONS NF-20 TURRET RADIAL SAUTER VDI30 DIN5480GRAZIANO MT-400G RADIAL SAUTER TURRET VDI30 DIN5480SCHAUBLIN 42L STRAIGHT-HEAD TURRET SAUTER VDI30 DIN5480GRAZIANO GT-300-SUBSP TURRET RADIAL SAUTER VDI30 DIN5480DMG GILDEMEISTER CTX-400TWIN RADIAL SAUTER TURRET VDI30 DIN5480DMG GILDEMEISTER CTV-160 TURRET SAUTER AXIAL VDI30 DIN5480LIO SHING TURRET LS-160DTR RADIAL VDI30 DIN5480DMG GILDEMEISTER TWIN-42 TURRET RADIAL SAUTER VDI30 DIN5480DMG GILDEMEISTER CTX-210 TURRET AXIAL SAUTER VDI30 DIN5480INDEX G-250 TURRET W-TOOTH VDI30 DIN5480VICTOR VTURN-A20CV TURRET AXIAL VDI30 DIN5480HAISHU CNC-150T TURRET VDI30 DIN5480DOOSAN MECATEC Z-340SM TURRET RADIAL SAUTER VDI30 DIN5480EMCO EMCOTURN ET-465MC RADIAL SAUTER TURRET VDI30 DIN5480NILES-SIMMONS NV-20 TURRET RADIAL SAUTER VDI30 DIN5480DMG GILDEMEISTER MF TWIN-62 RADIAL SAUTER TURRET VDI30 DIN5480TRAUB TND-300G TURRET VDI30 DIN5480INDEX V-160 TURRET V-STRIP VDI30 DIN5480DMG GILDEMEISTER CTX-410 AXIAL SAUTER TURRET VDI30 DIN5480DMG GILDEMEISTER SPRINT-50 SAUTER TURRET VDI30 DIN5480LIO SHING TURRET LS-160DBR RADIAL VDI30 DIN5480GRAZIANO CTX-400 SUBSP TURRET SAUTER RADIAL VDI30 DIN5480MAGDEBURGER MV-100 TURRET SAUTER RADIAL VDI30 DIN5480INDEX G-300 TURRET V-STRIP VDI30 DIN5480VICTOR VTURN-A20 TURRET VDI30 DIN5480HAISHU CNC-250T TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-400 AXIAL SAUTER TURRET VDI30 DIN5482EMCO HYPERTURN HT-645MC-PLUS RADIAL SAUTER TURRET VDI30 DIN5480TORNOS MD-20 TURRET VDI30 DIN5480INDEX GE-42 TURRET VDI30FORCE ONE FCL-20TS 2-SPINDLE 1-TURRET VDI30 DIN5480EMCO 345 TURRET VDI30 DIN5480SCHAUBLIN 65TM-5Y TURRET VDI30 DIN5480DMG GILDEMEISTER CTX-410-V6 DBL-TURRET VDI30 DIN5480VICTOR VTURN-A16 TURRET VDI30 DIN5480DUPLOMATIC SMBR20-340 TURRET VDI30 DIN5480
