VDI50 DIN5480 AXIAL FACE MILLING HEAD D=22 mm
VDI50 DIN5480 AXIAL FACE MILLING HEAD D=22 mm

VDI50 DIN5480 AXIAL FACE MILLING HEAD D=22 mm

CAD $4,078.80

SKU: IMT202280

IMT202280 / L30000078

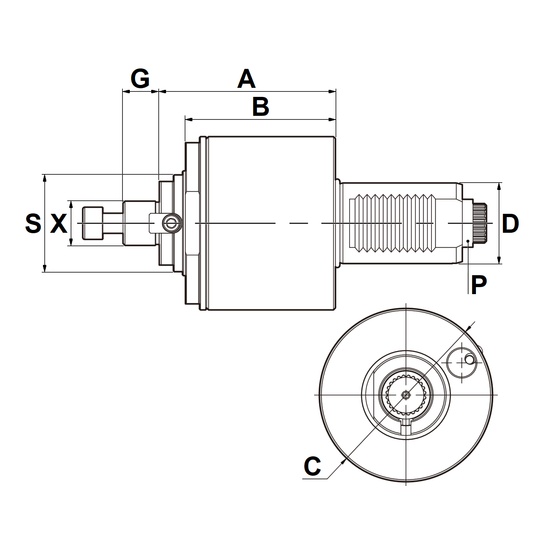

Product Parameters

IMTE No. Part No. D
DIN 69880		 X
DIN 6358		 S Max.Speed
R.P.M.		 A B C G P
DIN 5480
IMT202278 DA30-5480-16C 30 16 32 3000 85.5 71.5 68 17 W16x0.8
IMT202279 DAC40-5480-16C 40 16 32 69 56 86 17 W20x0.8
IMT202280 DAC40-5480-22C 40 22 48 69 56 86 18 W20x0.8
Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab
