Product Parameters
Tool Holder Turret Interface:
- Bolt Pattern: 62×70 mm / BMT40
- Power Coupling: STATIC

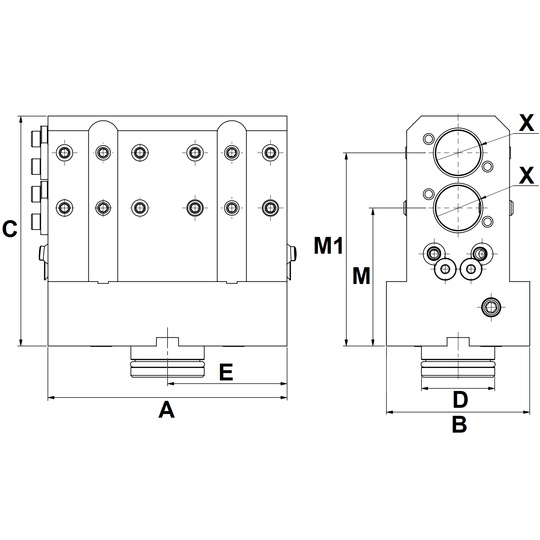

| IMTE No. | Part No. | X | D | A | B | C | E | M | M1 |
| IMT202197 | NZ2000-BMT-B25x2-105 | 25 | 39.9 | 130 | 78 | 125 | 65 | 75 | 105 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
