Product Parameters
Tool Holder Turret Interface:
- Turret: RADIAL
- Tooling Interface: BMT-BOLT PATTERN 84×94 mm
- Power Coupling: STATIC

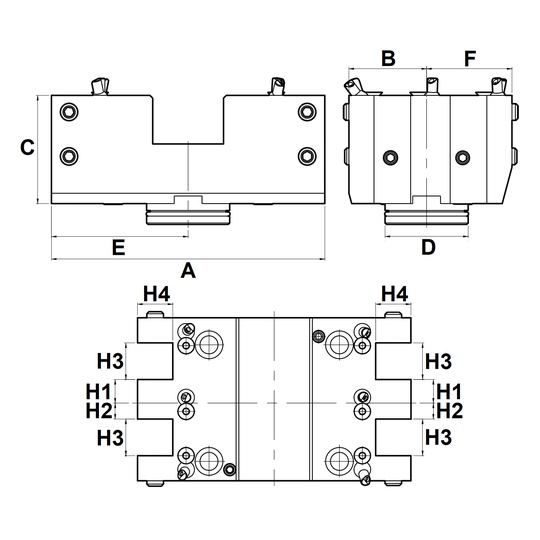

| IMTE No. | Part No. | D | H1 | H2 | H3 | H4 | A | B | C | E | F |
| IMT201157 | NL1500-C25x4-78 | 59.9 | 17 | 11.5 | 26 | 25 | 197 | 56 | 78 | 98.5 | 61.5 |
| IMT201158 | NL1500-C25.4×4-78 | 0.67″ | 0.452″ | 1.039″ | 1″ | 7.756″ | 2.205″ | 3.07″ | 3.878″ | 2.421″ |
For the detailed list of compatible machine models – please click the Compatible Machines tab
