Product Parameters

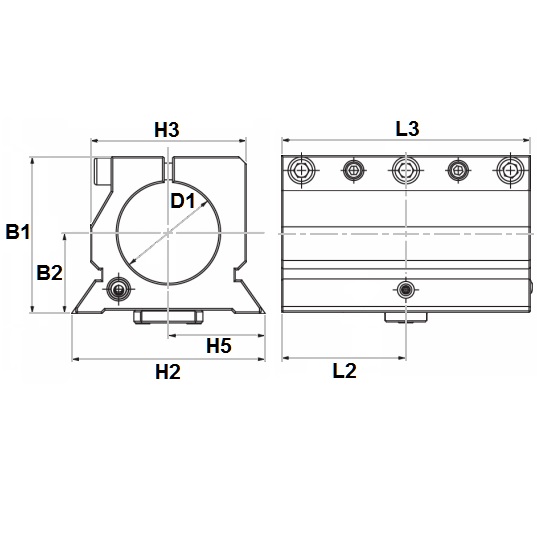

| IMTE No. | Part No. | H2 | D1 H7 | B1 | B2 | H3 | H5 | L2 | L3 |
| IMT100226 | THV-D3-72.40 | 72 | 40 | 76 | 35 | 68 | 36 | 75 | 150 |
| IMT100227 | THV-D3-115.60 | 115 | 60 | 93.5 | 48 | 93 | 57.5 | 99 | 198 |
| IMT100228 | THV-D3-115.63.5 | 115 | 2-1/2″ | 93.5 | 48 | 93 | 57.5 | 99 | 198 |
| IMT100229 | THV-D3-115.76.2 | 115 | 3″ | 93.5 | 48 | 93 | 57.5 | 99 | 198 |
| IMT100230 | THV-D3-115.80 | 115 | 80 | 93.5 | 48 | 93 | 57.5 | 99 | 198 |
| IMT100231 | THV-D3-140.80 | 140 | 80 | 125 | 63 | 115 | 70 | 119 | 238 |
| IMT100232 | THV-D3-140.100 | 140 | 100 | 125 | 63 | 115 | 70 | 119 | 238 |
