VDI40 BORING BAR HOLDERS with OUTER or INNER COOLANT for MAZAK SQT QTN series
VDI40 BORING BAR HOLDERS with OUTER or INNER COOLANT for MAZAK SQT QTN series

VDI40 BORING BAR HOLDERS with OUTER or INNER COOLANT for MAZAK SQT QTN series

Brand:

L30002059

Product Parameters

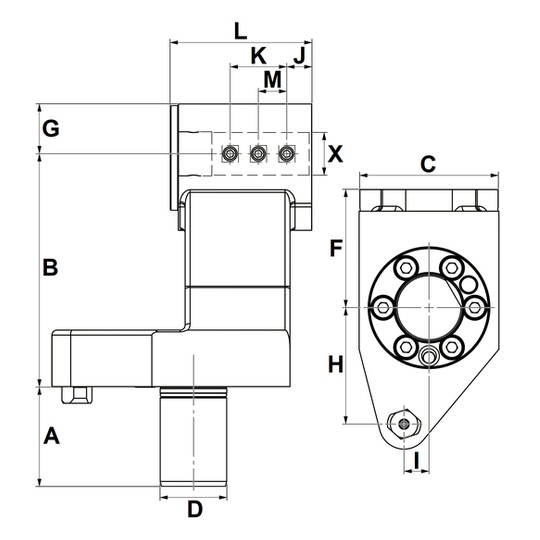

IMTE No. Ø D Ø X A B C F G H I J K L M Coolant
Supply
IMT202930 40 32 60 110 76 50 27 68 15 12.5 36 61 18 outer
IMT202931 32 75 inner
IMT202932 40 1″ 60 140 84 71 30 70 15 15 34 85 17 inner
IMT202933 1-1/4″ 71 34 85 17 inner
IMT202934 1-1/2″ 69 46 76 23 outer
IMT202935 1-1/2″ 71 34 85 17 inner
IMT202936 40 69 46 76 23 outer
IMT202937 40 71 34 85 17 inner
Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab
