Product Parameters
| Run-out: | 0.002 mm |
| Material: | Ductile Cast Iron |
| R.P.M.: | Max. 4000 RPM |
| Torque: | Max. 300 Nm |
| Drilling: | Max. 40 mm |
| Tapping: | Max. M30 |
| Gear Ratio: | 1 : 1 |
| Spindle Type: | BT; NT; SK(ISO); CAT |
| Standard Accessory: | Open End Wrench; L-type Wrench |
| Output Rotation: | Same as Input Rotation |

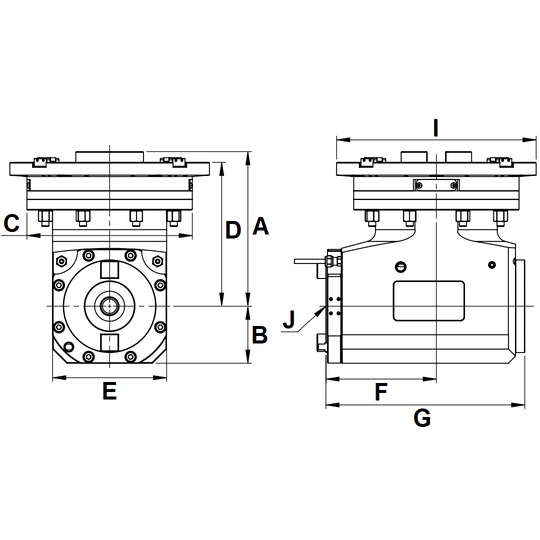

| IMTE No. | Part No. | A | B | C | D | E | F | G | I | J |
| IMT201135 | AHK-BT50-A3 | 217 | 80 | 232 | 202 | 160 | 155 | 279 | 280 | BT50 / SK50 / CAT50 |
This head requires a Flange Disc for installation
