Product Parameters

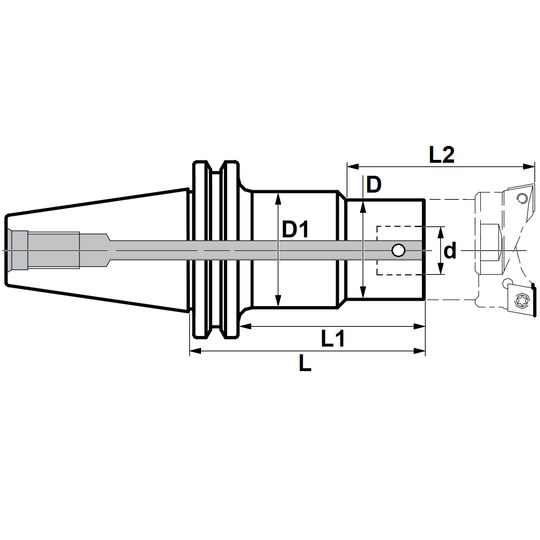

| IMTE No. | Part No. | D | D1 | d | L | L1 | L2 |
| IMT202660 | CAT40-ACK1-060 | 19 | 19 | 11 | 60 | 40.9 | 73.4 |
| IMT202661 | CAT40-ACK1-080 | 80 | 60.9 | 93.4 | |||
| IMT202662 | CAT40-ACK1-120 | 40 | 11 | 120 | 40 | 72.5 | |
| IMT202663 | CAT40-ACK1-170 | 170 | 40 | 72.5 | |||
| IMT202664 | CAT40-ACK2-060 | 24 | 24 | 14 | 60 | 40.9 | 76.4 |
| IMT202665 | CAT40-ACK2-080 | 80 | 60.9 | 96.4 | |||
| IMT202666 | CAT40-ACK2-100 | 24 | 14 | 100 | 80.9 | 116.4 | |
| IMT202667 | CAT40-ACK2-120 | 120 | 100.9 | 136.4 | |||
| IMT202668 | CAT40-ACK2-125 | 45 | 14 | 125 | 53 | 88.5 | |
| IMT202669 | CAT40-ACK2-175 | 170 | 53 | 88.5 | |||
| IMT202670 | CAT40-ACK3-060 | 31 | 31 | 18 | 60 | 40.9 | 80.9 |
| IMT202671 | CAT40-ACK3-080 | 80 | 60.9 | 100.9 | |||
| IMT202672 | CAT40-ACK3-100 | 31 | 18 | 100 | 80.9 | 120.9 | |
| IMT202673 | CAT40-ACK3-120 | 120 | 100.9 | 140.9 | |||
| IMT202674 | CAT40-ACK3-150 | 50 | 18 | 150 | 58 | 98 | |
| IMT202675 | CAT40-ACK3-200 | 200 | 58 | 98 | |||
| IMT202676 | CAT40-ACK4-080 | 39 | 39 | 22 | 80 | 60.9 | 107.9 |
| IMT202677 | CAT40-ACK4-100 | 100 | 80.9 | 127.9 | |||
| IMT202678 | CAT40-ACK4-125 | 39 | 22 | 125 | 105.9 | 152.9 | |
| IMT202679 | CAT40-ACK4-145 | 50 | 22 | 145 | 56 | 103 | |
| IMT202680 | CAT40-ACK4-195 | 195 | 56 | 103 | |||
| IMT202681 | CAT40-ACK5-080 | 50 | 50 | 28 | 80 | 60.9 | 117.9 |
| IMT202682 | CAT40-ACK5-100 | 100 | 80.9 | 137.9 | |||
| IMT202683 | CAT40-ACK5-135 | 135 | 115.9 | 172.9 | |||
| IMT202684 | CAT40-ACK6-055 | 64 | 64 | 36 | 55 | 35.9 | 106.9 |
Unless otherwise specified, all dimensions are in millimeters
The boring heads and/or pull studs are not included. Please order them additionally if necessary
