Product Parameters

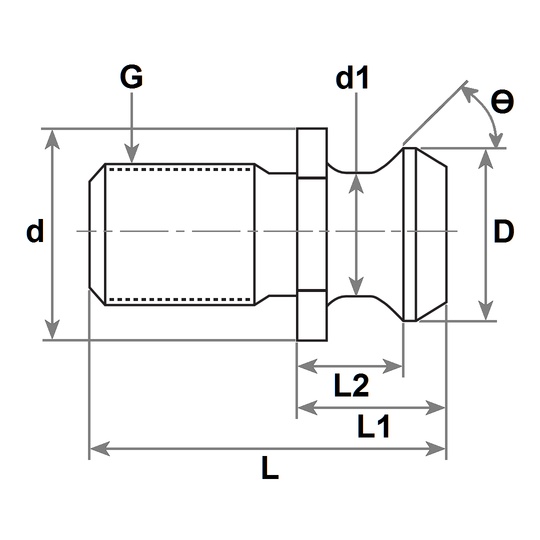

| Part No. | L | L1 | L2 | D | d | d1 | G Thread |
θ |
| CAT40-45A | 1.500″ | 0.640″ | 0.440″ | 0.740″ | 0.940″ | 0.490″ | 5/8″-11 | 45° |
| CAT50-45A | 2.300″ | 1.000″ | 0.700″ | 1.140″ | 1.440″ | 0.820″ | 1″-8 | 45° |
Unless otherwise specified, all dimensions are in inches
PULL STUDS TYPE A for CAT TOOL HOLDERS
L30000319
