Product Parameters

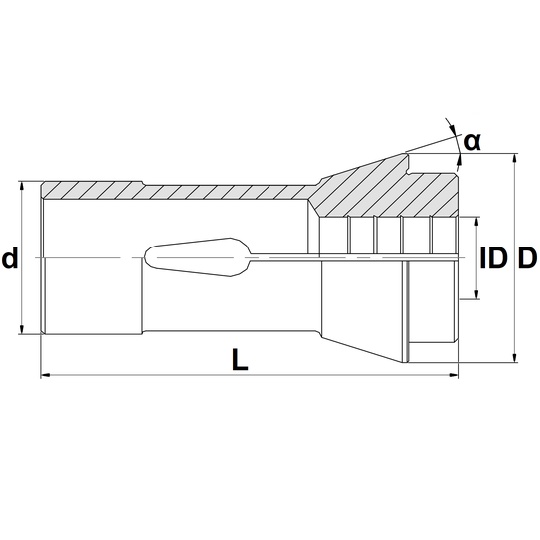

| Metric size | ||||||||
| Part No. | OEM Part No. | Material | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | ID Range | ID Shape |
| 6216R | Neukomm 511.001 | Steel | 26.0 | 67 | 36.0 | 16° | 2.0 ~ 20.0 mm (with 0.5 mm increment) |
Round |
| 3216R | Carbide | |||||||
| 6216H | Steel | 26.0 | 67 | 36.0 | 16° | 3.0 ~ 17.0 mm (with 1.0 mm increment) |
Hexagon | |
| 3216H | Carbide | |||||||
| 6216S | Steel | 26.0 | 67 | 36.0 | 16° | 3.0 ~ 14.0 mm (with 1.0 mm increment) |
Square | |
| 3216S | Carbide | |||||||
| Imperial size | ||||||||
| Part No. | OEM Part No. | Material | Ø d (inch) |
L (mm) |
Ø D (inch) |
α | ID Range | ID Shape |
| 6216R | Neukomm 511.001 | Steel | 1.023″ | 2.638″ | 1.418″ | 16° | 5/64″ ~ 25/32″ (with 1/64″ increment) |
Round |
| 3216R | Carbide | |||||||
| 6216H | Steel | 1.023″ | 2.638″ | 1.418″ | 16° | 1/8″ ~ 11/16″ (with 1/32″ increment) |
Hexagon | |
| 3216H | Carbide | |||||||
| 6216S | Steel | 1.023″ | 2.638″ | 1.418″ | 16° | 1/8″ ~ 17/32″ (with 1/32″ increment) |
Square | |
| 3216S | Carbide | |||||||
