Product Parameters

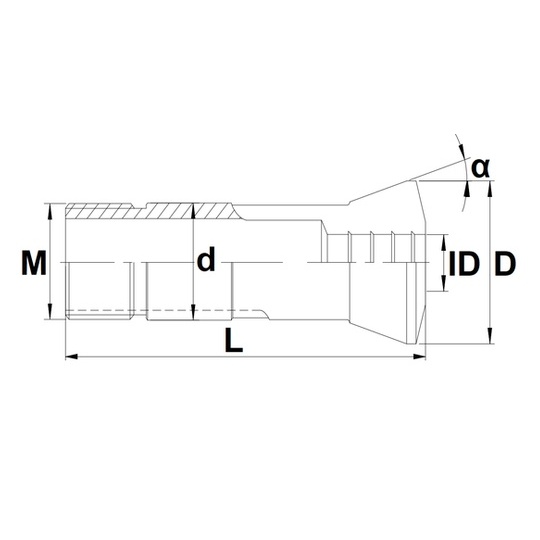

| Metric size | ||||||||
| Part No. | Material | Ø d (mm) |
L (mm) |
Ø D (mm) |
α | M Thread |
ID Range | ID Shape |
| CITIZEN 1820R | Steel | 33.0 | 100.0 | 41.0 | 15° | M32 x 1.5 | 2.0 ~ 25.0 mm (with 0.5 mm increment) |
Round |
| CITIZEN 2820R | Carbide | |||||||
| CITIZEN 1820H | Steel | 33.0 | 100.0 | 41.0 | 15° | M32 x 1.5 | 3.0 ~ 21.0 mm (with 1.0 mm increment) |
Hexagon |
| CITIZEN 2820H | Carbide | |||||||
| CITIZEN 1820S | Steel | 33.0 | 100.0 | 41.0 | 15° | M32 x 1.5 | 3.0 ~ 17.0 mm (with 1.0 mm increment) |
Square |
| CITIZEN 2820S | Carbide | |||||||
| Imperial size | ||||||||
| Part No. | Material | Ø d (inch) |
L (mm) |
Ø D (inch) |
α | M Thread |
ID Range | ID Shape |
| CITIZEN 1820R | Steel | 1.2984″ | 3.937″ | 1.615″ | 15° | M32 x 1.5 | 5/64″ ~ 1″ (with 1/64″ increment) |
Round |
| CITIZEN 2820R | Carbide | |||||||
| CITIZEN 1820H | Steel | 1.2984″ | 3.937″ | 1.615″ | 15° | M32 x 1.5 | 1/8″ ~ 27/32″ (with 1/32″ increment) |
Hexagon |
| CITIZEN 2820H | Carbide | |||||||
| CITIZEN 1820S | Steel | 1.2984″ | 3.937″ | 1.615″ | 15° | M32 x 1.5 | 1/8″ ~ 11/16″ (with 1/32″ increment) |
Square |
| CITIZEN 2820S | Carbide | |||||||
