HIGH-SPEED LIVE CENTERS NCS-MT with INTERCHANGEABLE TIPS
HIGH-SPEED LIVE CENTERS NCS-MT with INTERCHANGEABLE TIPS

HIGH-SPEED LIVE CENTERS NCS-MT with INTERCHANGEABLE TIPS

L30000402

Product Parameters

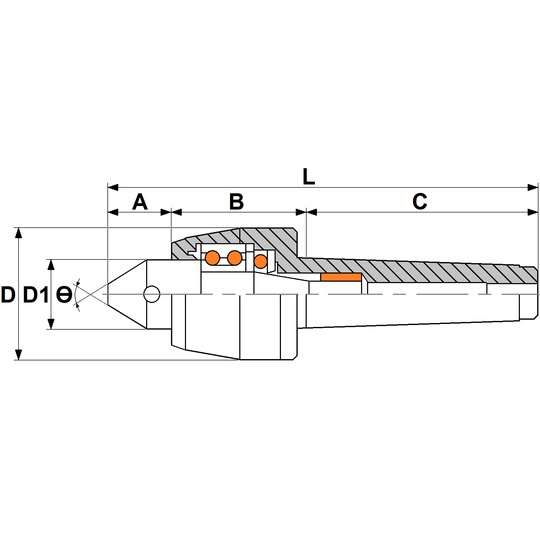

IMTE No. Part No. A B C D D1 L Accuracy Max.Speed
R.P.M		 θ
Angle		 Compatible
Center Tips
IMT202589 NCS-MT.3 28 55 86 53 30 169 0.005 5000 60° G230 / G212 / G210
G208 / G206 / G205
G200 *
IMT202590 NCS-MT.4 30 62 108 63 32 200 4500
IMT202591 NCS-MT.4P 30 62 108 63 32 200 0.005 4500 60° G345 / G316 / G312
G310 / G308 / G306
G200 **
IMT202592 NCS-MT.5P 32 71 136 83 40 239 3500
* G230 and ** G345 series interchangeable tips are not included. Please order them separately, if necessary

Unless otherwise specified, all dimensions are in millimeters
