Product Parameters
Tool Holder Interface: CITIZEN A20/BSE107-31

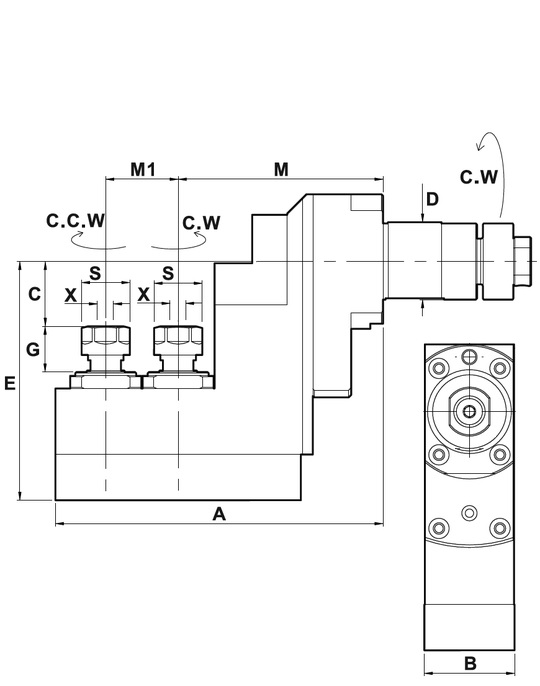

| IMTE No. | Part No. | D | X Capacity |
S | Rotation Max.speed (R.P.M.) |
A | B | C | E | G | M | M1 | CNC Lathe |
| IMT003688 | BSE207-DB31-ER11-2C | 31 | 1~7 ER11 | 19 | 4000 | 129 | 35 | 25 | 94 | 18 | 80.6 | 28.5 | CIRTIZEN A20 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
