Product Parameters
| IMTE No. | Gear Ratio | Max.speed (R.P.M.) |
Positioning Angle |
Compatible Tool |
| IMT300024 | 1 : 1 | 6000 | ±15° | UTILIS MWT12.164.4548.145.09 * |
* The Whirling Ring Assembly is not included. Please order it separately, if necessary. Please also check the whirling ring dimensions to determine the best fit tool

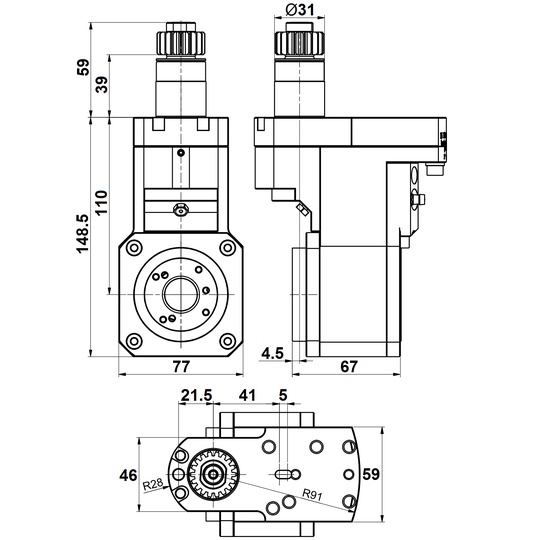

Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
