Product Parameters
| IMTE No. | Tool Clamping | Gear Ratio | Rotation Max.speed (R.P.M.) |
| IMT201110 | ER32UM | 1 : 1 | 6000 |
For the detailed list of compatible machine models – please click the Compatible Machines tab

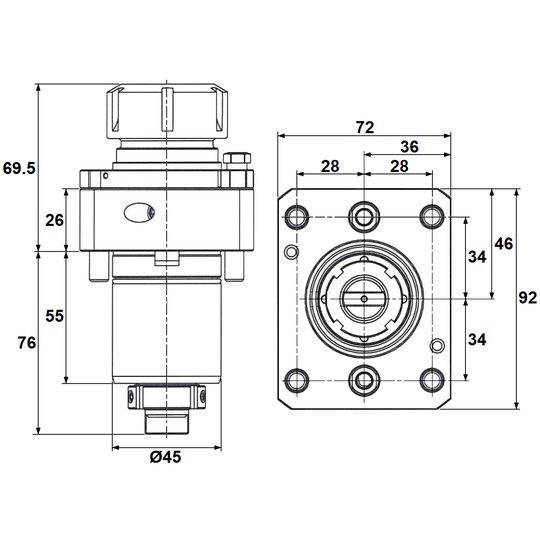

MIYANO AXIAL DRILLING MILLING HEAD ER32UM for MIYANO BND BNE BNJ BNX
IMT201110 / L30002014
MIYANO BNJ-42S2 DIA.45MIYANO BND-34SY5 DIA.45MIYANO BNJ-51S3 DIA.45MIYANO BNJ-34SY2 DIA.45MIYANO BNE-51S6 DIA.45MIYANO BNE-51S5 DIA.45MIYANO BNJ-34S3 DIA.45MIYANO BNE-42SY6 DIA.45MIYANO BND-51S TURRET BMT45MIYANO BNJ-51SY3 DIA.45MIYANO BNJ-34S2 DIA.45MIYANO BNJ-51SY6MIYANO BNJ-42SY3 DIA.45MIYANO BND-34S5 DIA.45MIYANO BND-51SMIYANO BNJ-42SY2 DIA.45MIYANO BNJ-51S2 DIA.45MIYANO BNX-51MYMIYANO BNJ-51SY2 DIA.45MIYANO BNJ-42S3 DIA.45MIYANO BNX-51MSYMIYANO BND-51SY2 DIA.45MIYANO BNE-51SY6 DIA.45MIYANO BNE-51SY5 DIA.45MIYANO BNJ-34SY3 DIA.45MIYANO BNE-42S6 DIA.45
