BMT45 DIN1809 AXIAL DRILLING MILLING HEAD DOUBLE ER16x2 Y AXIS FOR DAEWOO
BMT45 DIN1809 AXIAL DRILLING MILLING HEAD DOUBLE ER16x2 Y AXIS FOR DAEWOO

BMT45 DIN1809 AXIAL DRILLING MILLING HEAD DOUBLE ER16x2 Y AXIS FOR DAEWOO

CAD $2,669.00

SKU: IMT005834 Brand: , , ,

IMT005834 / L30000626

Product Parameters

Tool Holder Turret Interface:

  • Turret: RADIAL
  • Tooling Interface: BMT-45
  • Power Coupling: DIN1809
  • Y Axis: Y-AXIS

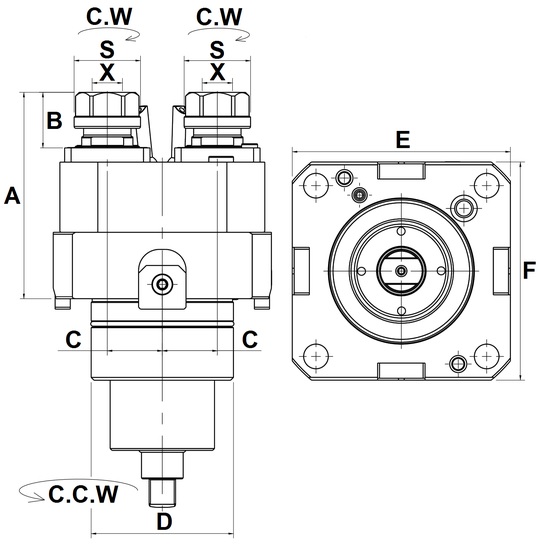

IMTE No. Part No. D X
Capacity		 S Rotation
Max.speed
(R.P.M.)		 A B C E F BMT
size
IMT005834 DW220-DA45-ER16DY 45 1~10 ER16 28 5000 86 27 24 96 84 DAEWOO BMT45
IMT011900 DW230-DA55-ER16DY 55 86 27 24 96 85 DAEWOO BMT55
IMT011821 DW300-DA65-ER20DY 65 1~13 ER20 35 5000 104 29 29 94 104 DAEWOO BMT65
IMT005206 DW350-DA75-ER20DY 75 109 29 29 115 115 DAEWOO BMT75
For the detailed list of compatible machine models – please click the Compatible Machines tab
