BMT55 DIN1809 RADIAL DRILLING MILLING HEADS for DOOSAN
BMT55 DIN1809 RADIAL DRILLING MILLING HEADS for DOOSAN

BMT55 DIN1809 RADIAL DRILLING MILLING HEADS for DOOSAN

Brand: ,

L30000309

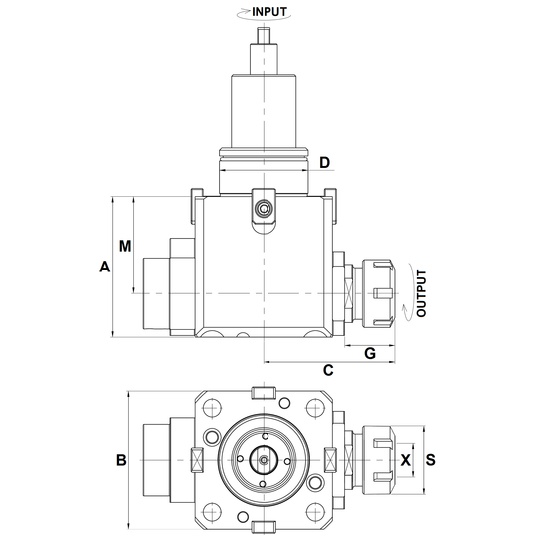

Product Parameters

IMTE No. D X
Capacity		 S Max.speed
(R.P.M.)		 A B C G M Input-Output
Rotation		 Coolant
Supply		 Bolt
Pattern
IMT202980 55 1~16 ER25 42 5000 87 85 83 32 60 CW-CW* outer 64×64
IMT202981 43 4000 86 85 82.5 31.5 60 CW-CCW** outer
IMT202982 42 10000 87 85 89 30 60 CW-CW inner
IMT202983 43 4000 86 85 82.5 31.5 60 CW-CCW inner
IMT202984 42 5000 87 85 82 30 60 CW-CW inner
IMT202985 42 5000 97 85 83 32 70 CW-CW outer
IMT202986 43 4000 96 85 82.5 31.5 70 CW-CCW outer
IMT202987 42 5000 97 85 82 30 70 CW-CW inner
IMT202988 43 4000 97 85 82.5 31.5 70 CW-CCW inner
IMT202989 42 5000 107 85 83 32 80 CW-CW outer
IMT202990 42 5000 107 85 83 32 80 CW-CW inner
IMT202991 42 5000 112 85 83 32 85 CW-CW outer
IMT202992 43 4000 111 85 82.5 31.5 85 CW-CCW outer
IMT202993 42 5000 112 85 83 32 85 CW-CW inner
IMT202994 43 4000 111 85 82.5 31.5 85 CW-CCW inner
IMT202995 42 5000 127 85 83 26 100 CW-CW outer
IMT202996 42 5000 127 85 83 32 100 CW-CW inner
IMT202997 42 5000 137 85 83 32 110 CW-CW outer
IMT202998 42 5000 137 85 83 32 110 CW-CW inner
IMT202999 42 5000 142 85 83 32 115 CW-CW outer
IMT203000 55 2~20 ER32 50 5000 87 85 103 51 60 CW-CW outer 64×64
IMT203001 50 5000 87 85 103 51 60 CW-CW inner
IMT203002 50 5000 97 85 103 51 70 CW-CW outer
IMT203003 50 5000 97 85 103 51 70 CW-CW inner
*CW – Clock-Wise
**CCW – Counter-Clock-Wise

Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab
