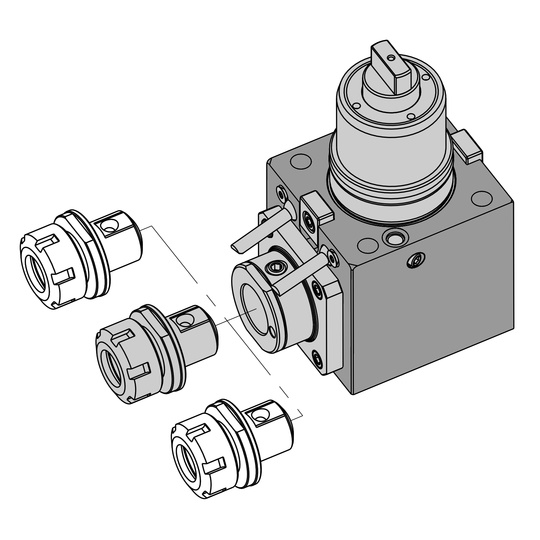

BMT RADIAL DRILLING MILLING HEAD ER25 L=55 mm QUICK CHANGE for NAKAMURA WT150 WY250
BMT RADIAL DRILLING MILLING HEAD ER25 L=55 mm QUICK CHANGE for NAKAMURA WT150 WY250
BMT RADIAL DRILLING MILLING HEAD ER25 L=55 mm QUICK CHANGE for NAKAMURA WT150 WY250

BMT RADIAL DRILLING MILLING HEAD ER25 L=55 mm QUICK CHANGE for NAKAMURA WT150 WY250

CAD $6,382.86

SKU: IMT201207 Brand:

IMT201207 / L30000895

Product Parameters

Tool Holder Turret Interface:

  • Turret: RADIAL
  • Tooling Interface: BMT-BOLT PATTERN: 69×71 mm
  • Power Coupling: DIN1809

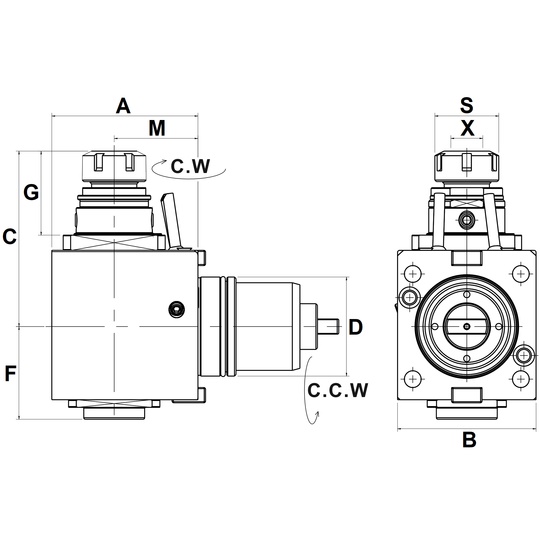

IMTE No. D X
Capacity		 S Maximum
R.P.M.		 A B C F G M CNC Lathe
IMT201207 65 1~16 ER25 42 5000 96 91 115 61 55 55 NAKAMURA SUPERMILL WT150
NAKAMURA SUPERMILL WY250L
For the detailed list of compatible machine models – please click the Compatible Machines tab
