Product Parameters
Tool Holder Turret Interface:
- Turret: RADIAL
- Tooling Interface: BOLT PATTERN 40×55 mm

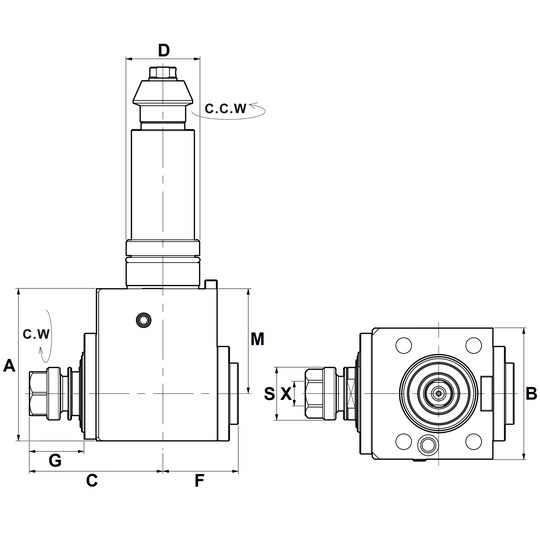

| IMTE No. | Part No. | D | X ER Capacity |
S | Rotation Max.speed (R.P.M.) |
A | B | C | F | G | M | CNC Lathe |
| IMT200566 | TW8-DF42NA-ER16-60 | 42 | 1~10 ER16 | 30 | 5000 | 87 | 75 | 76 | 43 | 31 | 60 | NAKAMURA TW8 GOODWAY GLS100 GOODWAY GTS150 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
