Product Parameters
| IMTE No. | D DIN 69880 |
X Capacity |
S | Max.Speed R.P.M. |
A | B | C | G | M | Input-Output Rotation |
Coolant Supply |
| IMT202750 | 50 | 3~26 ER40 | 63 | 5000 | 115 | 88 | 110 | 43 | 75 | CW*-CW* | Outer |
| IMT202751 | 4000 | 123 | 88 | 117.5 | 51 | 75 | CW-CW | Inner |
*CW – Clock-Wise

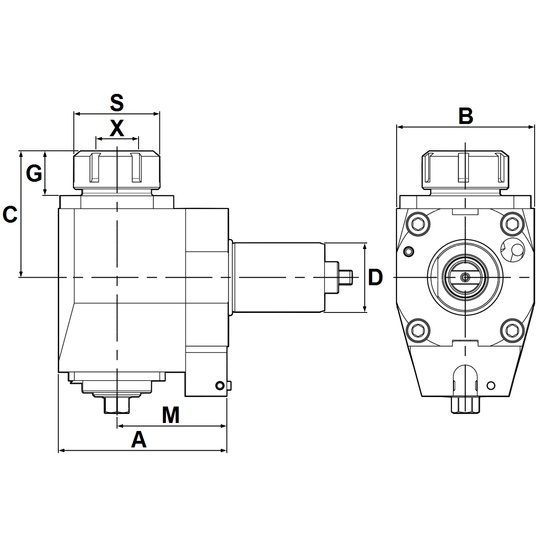

Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
