VDI50 DIN1809 RADIAL BACKSET DRILLING MILLING HEADS RIGHT-HAND
VDI50 DIN1809 RADIAL BACKSET DRILLING MILLING HEADS RIGHT-HAND

VDI50 DIN1809 RADIAL BACKSET DRILLING MILLING HEADS RIGHT-HAND

Brand:

L30000084

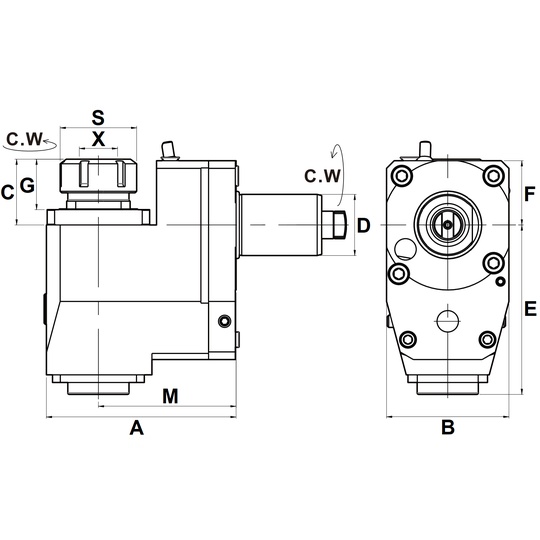

Product Parameters

IMTE No. D
DIN 69880		 X
Capacity		 S Max.Speed
R.P.M.		 A B C E F G M Coolant
Supply
IMT201737 50 3~26 ER40 63 5000 129 86 50 112 42 40 90 Outer
IMT201738 4000 129 86 48.5 133 42 38.5 90 Inner
Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab
