VDI30 DIN5482 RADIAL DRILLING MILLING HEAD LEFT-HAND ER16 L=65 mm EXTERNAL COOLANT CW-CCW
VDI30 DIN5482 RADIAL DRILLING MILLING HEAD LEFT-HAND ER16 L=65 mm EXTERNAL COOLANT CW-CCW

VDI30 DIN5482 RADIAL DRILLING MILLING HEAD LEFT-HAND ER16 L=65 mm EXTERNAL COOLANT CW-CCW

CAD $2,668.00

SKU: IMT200413

IMT200413 / L30000062

Product Parameters

Tool Holder Turret Interface:

  • Tooling Interface: VDI-30
  • Power Coupling: DIN5482

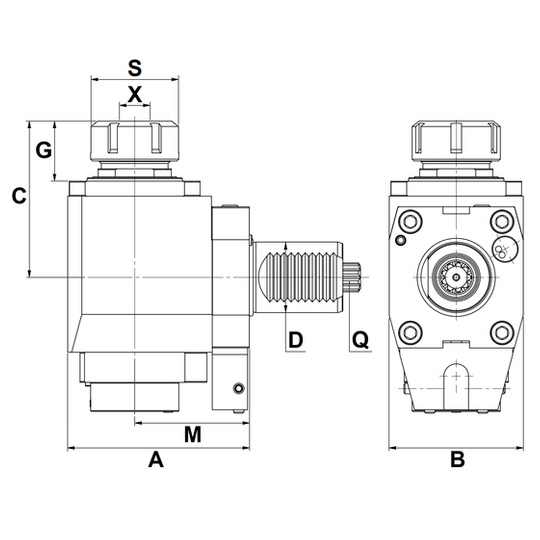

IMTE No. Part No. D
DIN 69880		 X
ER Capacity		 S Input-Output
Rotation		 A B C G M Q
DIN 5482
IMT200413 TFL30-5482-ER16-65 30 1~10 ER16 30 CW*-CCW** 87 64 87 37 65 B15x12
IMT200414 TFL30-5482-ER16-85 CW-CCW 117 64 87 37 85
IMT200415 TFL40-5482-ER20-65 40 1~13 ER20 35 CW-CCW 99 80 94 46 65 B17x14
IMT200416 NTFL40-5482-ER20-65 CW-CW 101 80 105 25 65
IMT200417 NTFL40-5482-ER20-85 CW-CCW 119 80 94 46 85
IMT200418 NTFL40-5482-ER20-85 CW-CW 121 80 105 25 85
IMT200419 NTFL50-5482-ER25-75 50 1~16 ER25 42 CW-CW 115 88 105 42 75 B20x17
* CW – Clockwise Rotation
** CCW – Counter-Clockwise Rotation

For the detailed list of compatible machine models – please click the Compatible Machines tab
