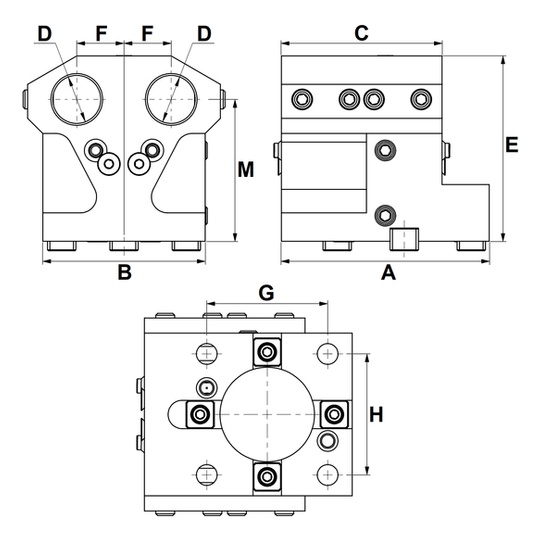

Product Parameters
| IMTE No. | D | A | B | C | E | M | F | Bolt Pattern | BMT size |
|
| G | H | |||||||||
| IMT203004 | 25 | 110 | 86 | 85 | 98 | 75 | 25 | 64 | 64 | BMT55 |
| IMT203005 | 1″ | 4.33″ | 3.39″ | 3.35″ | 3.86″ | 2.96″ | 0.99″ | 2.52″ | 2.52″ | |
| IMT203006 | 32 | 126 | 107 | 85 | 120 | 85 | 25 | 73 | 70 | BMT65 |
Unless otherwise specified, all dimensions are in millimeters
For the detailed list of compatible machine models – please click the Compatible Machines tab
