Product Parameters
Tool Holder Turret Interface:
- Turret: RADIAL
- Tooling Interface: BMT-BOLT PATTERN 84×94 mm
- Power Coupling: STATIC

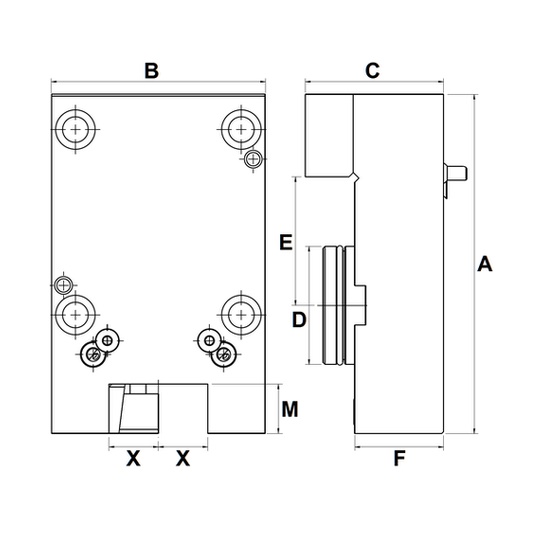

| IMTE No. | Part No. | D | A | B | C | E | F | M | X | CNC Lathe |
| IMT201152 | NL1500-C25-45 | 59.9 | 172 | 108 | 70 | 65.2 | 45 | 25 | 25 | MORI SEIKI NL1500 / NL2000 MORI SEIKI NL2500 / NL3000 MORI SEIKI NLX1500 / NLX2000 MORI SEIKI NLX2500 / NLX3000 |
| IMT201153 | NL1500-C25.4-45 | 6.77″ | 4.252″ | 2.756″ | 2.567″ | 1.77″ | 1″ | 1″ |
For the detailed list of compatible machine models – please click the Compatible Machines tab
