Product Parameters
Tool Holder Turret Interface:
- Tooling Interface: BOLT PATTERN 65×73 mm
- Power Coupling: STATIC

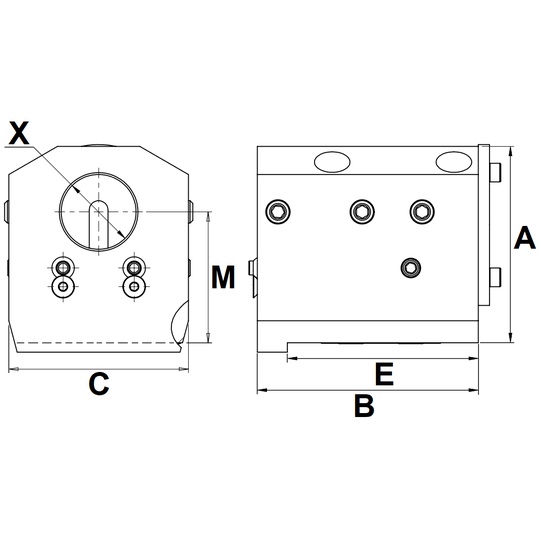

| IMTE No. | Part No. | X | A | B | C | E | M | CNC Lathe |
| IMT200699 | OK-EX-B32-75-118 | 32 | 106 | 118 | 96 | 102 | 75 | OKUMA LB2000EX OKUMA LB3000EX OKUMA LU3000EX OKUMA L300MW V12 |
| IMT200700 | OK-EX-B40-90-142 | 40 | 125 | 142 | 96 | 102 | 90 | |
| IMT200701 | OK-EX-B40-95-142 | 40 | 130 | 142 | 96 | 102 | 95 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
