BMT65 DIN1809 RADIAL DRILLING MILLING HEAD DOUBLE ER32x2 L= 85 mm for DAEWOO, DOOSAN
BMT65 DIN1809 RADIAL DRILLING MILLING HEAD DOUBLE ER32x2 L= 85 mm for DAEWOO, DOOSAN

BMT65 DIN1809 RADIAL DRILLING MILLING HEAD DOUBLE ER32x2 L= 85 mm for DAEWOO, DOOSAN

CAD $5,339.00

SKU: IMT100652 Brand: , ,

IMT100652 / L30000686

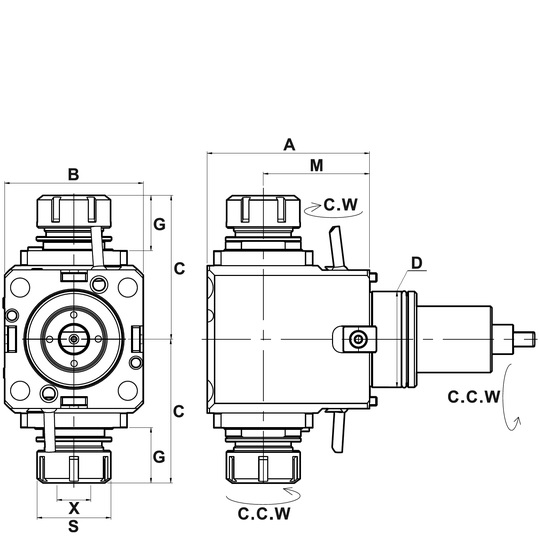

Product Parameters

IMTE No. Part No. D X
ER Capacity		 S Rotation
Max.speed
(R.P.M.)		 A B C G M Bolt
pattern
IMT100646 DW220-DF45-ER20-65D 45 1~13 ER20 35 4000 95 75 85 30 65 BMT45
IMT100647 DW220-DF45-ER20-85D 115 75 85 30 85
IMT100648 DW230-DF55-ER25-60D 55 1~16 ER25 42 4000 95 85 91 31 60 BMT55
IMT100649 DW230-DF55-ER25-70D 105 85 91 31 70
IMT100650 DW230-DF55-ER25-85D 120 85 91 31 85
IMT100651 DW300-DF65-ER32-72D 65 2~20 ER32 50 4000 110 94 98 38 72 BMT65
IMT100652 DW300-DF65-ER32-85D 123 94 98 38 85
IMT100653 DW300-DF65-ER32-100D 138 94 98 38 100
IMT100654 DW300-DF65-ER32-115D 152 94 98 38 115
For the detailed list of compatible machine models – please click the Compatible Machines tab
