Product Parameters
Tool Holder Turret Interface:
- Turret: RADIAL
- Tooling Interface: BMT65
- Bolt Pattern: 70×73 mm

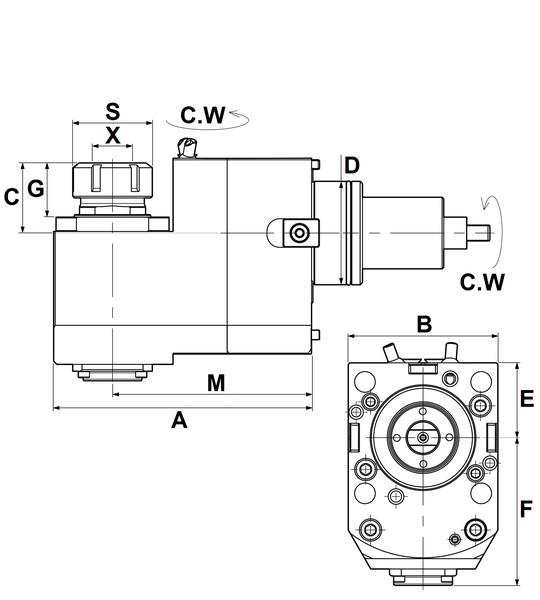

| IMTE No. | Part No. | D | X ER Capacity |
S | Rotation Max.speed (R.P.M.) |
A | B | C | E | F | G | M |
| IMT100931 | DW300-DB65-ER32-125 | 65 | 2~20 ER32 | 50 | 5000 | 162 | 94 | 44 | 47 | 93 | 34 | 125 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
