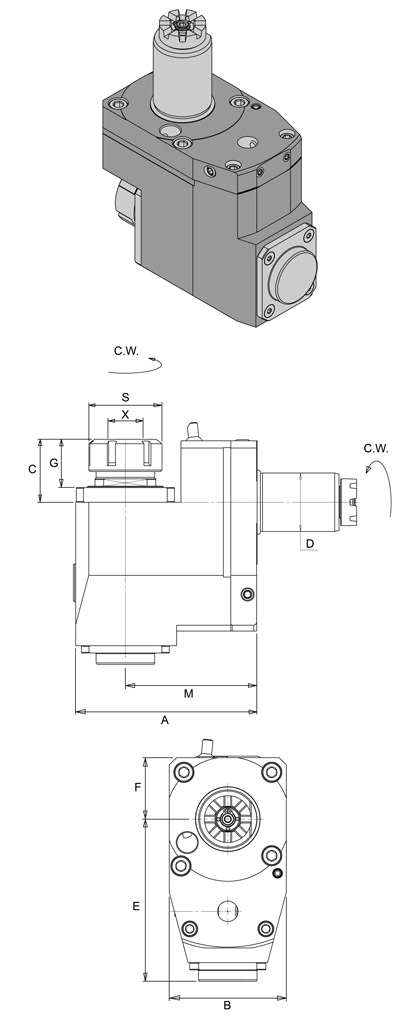

Product Parameters
Tool Holder Turret Interface:
- Turret: N/S
- Tooling Interface: VDI-40
- Power Coupling: SPUR-MT
- Y Axis: N/S
| D DIN 69880 |
X Capacity |
S | Maximum R.P.M. | i | A | B | C | E | F | G | M | Order No. |
| 20 | 1-10 ER16 | 30 | 5000 | 1 : 1 | 83 | 50 | 35 | 70 | 27 | 27 | 60 | BR20-MT-16-60 BL20-MT-16-60 |
| 30 | 1-16 ER25 | 42 | 5000 | 1 : 1 | 95 | 60 | 42 | 76 | 32 | 29 | 72 | BR30-MT-25-72 BL30-MT-25-72 |
| 40 | 2-20 ER32 | 50 | 5000 | 1 : 1 | 124 | 80 | 44 | 110 | 42 | 34 | 90 | BR40-MT-32-90 BL40-MT-32-90 |
| 50 | 3-26 ER40 | 63 | 5000 | 1 : 1 | 129 | 86 | 49 | 112 | 45 | 39 | 90 | BR50-MT-40-90 BL50-MT-40-90 |
| 50 | 3-26 ER40 | 63 | 5000 | 1 : 1 | 129 | 86 | 48.5 | – | – | 38.5 | 90 | BR50-MT-40-90-CW |
| 60 | 10-34 ER50 | 78 | 5000 | 1 : 1 | 147 | 104 | 83 | 118 | 54 | 50 | 106 | BR60-MT-50-106 BL60-MT-50-106 |
| 60 | 10-34 ER50 | 78 | 5000 | 1 : 1 | 154 | 104 | 71.5 | – | – | 50 | 106 | BR60-MT-50-106-CW |
| 60 | 10-34 ER50 | 78 | 5000 | 1 : 1 | 183 | 104 | 73.5 | 123 | 54 | 51 | 135 | BL60-MT-50-135 |
