Product Parameters
Tool Holder Turret Interface:
- Turret: RADIAL
- Tooling Interface: BMT-55 / Bolt Pattern: 64 x 64 mm
- Power Coupling: STATIC

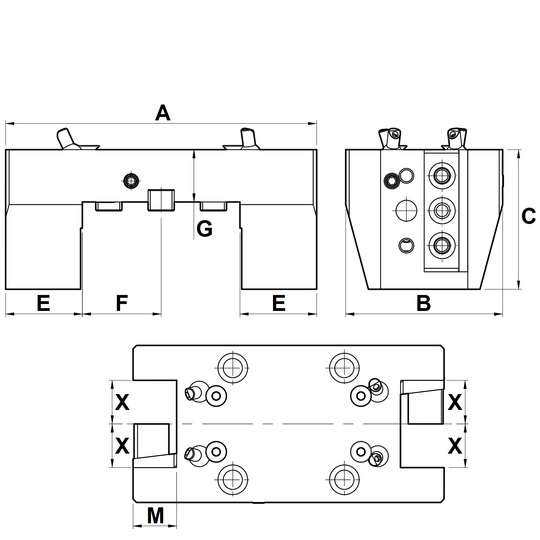

| IMTE No. | Part No. | X | A | B | C | E | F | G | M | BMT size |
| IMT101474 | DW230-C20x2-30-W100 | 20 | 176 | 86 | 55 | 37.5 | 50.5 | 30 | 20 | BMT55 |
| IMT101475 | DW230-C20x2-40-W90 | 20 | 160 | 86 | 65 | 34.5 | 45.5 | 40 | 20 | |
| IMT101476 | DW230-C25x2-30-W100 | 25 | 188 | 90 | 80 | 44 | 50.5 | 30 | 25 | |
| IMT101477 | DW230-C25.4×2-30-W100 | 1″ | 7.4″ | 3.54″ | 2.95″ | 1.73″ | 1.99″ | 1.18″ | 1″ | |
| IMT101478 | DW230-C25x2-30-W90 | 25 | 178 | 90 | 80 | 44 | 45.5 | 30 | 25 | |
| IMT101479 | DW230-C25.4×2-30-W90 | 1″ | 7.0″ | 3.54″ | 3.14″ | 1.73″ | 1.79″ | 1.18″ | 1″ | |
| IMT101480 | DW300-C25x2-40-W100 | 25 | 182 | 97 | 70 | 40.5 | 50.5 | 40 | 25 | BMT65 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
