Home / Tool Holder Static / TAKAMAZ Static Holders / L30001114 / VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=1-1/2″ inch L=100 mm for TAKAMAZ
VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=1-1/2″ inch L=100 mm for TAKAMAZ
VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=1-1/2″ inch L=100 mm for TAKAMAZ

VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=1-1/2″ inch L=100 mm for TAKAMAZ

CAD $798.32

SKU: IMT202112 Brand: HAAS, TAKAMAZ

IMT202112 / L30001114

Icons
  • You can buy them securely via PayPal, we also accept Mastercard, Visa and American Express.
  • We ship via UPS.
  • Description
  • Compatible Machines

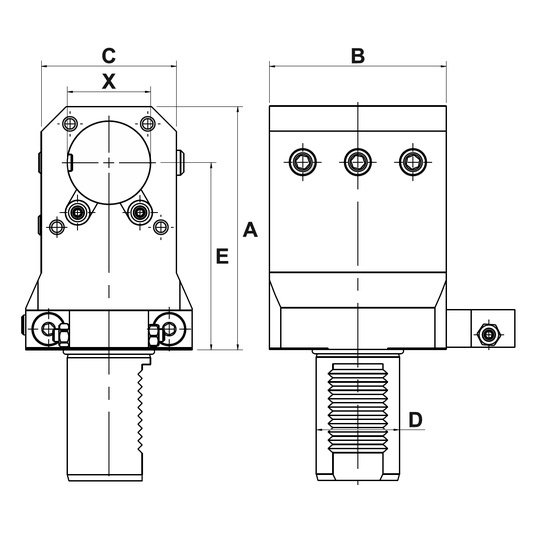

Product Parameters

IMTE No. Part No. D X A B C E CNC Lathe
IMT202110 TZ-T1-40-B38.1-90-P63 40 1-1/2″ 117 85 65 90 TAKAMAZ XY2000
IMT202111 TZ-T1-40-B40-90-P63 40
IMT202112 TZ-T1-40-B38.1-100-P63 40 1-1/2″ 127 85 65 100
IMT202113 TZ-T1-40-B40-100-P63 40
Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab

HAISHU CNC-450B TURRET VDI40 DIN5480TAKAMAZ XY-2000 TURRET RADIALTRAUB TND-550 TURRET VDI40HESSAPP DVT-300 DBL-TURRET RADIAL VDI40 DIN5482HWACHEON HI-TECH-400MC TURRET VDI40 DIN1809WEISSER SOEHNE FRONTOR CS-10 TURRET VDI40 DIN5480HAISHU CNC-350B TURRET VDI40 DIN5480HAAS ST-10 VDI-TURRET HAAS VDI40HAAS ST-40L HYBRID-TURRET HAAS VDI40JOHNFORD TM-35 TURRET VDI40 SPUR-MTWEISSER SOEHNE UNIVERTOR A-90L TURRET VDI40 DIN5482TOPPER TB-25YMB TURRET VDI40 SPUR-MTHAAS ST-25Y HYBRID-TURRET HAAS VDI40HAAS ST-30SSY HYBRID-TURRET HAAS VDI40KIA SUPER KIA TURN SKT-21VM TURRET VDI40 DIN1809WEISSER SOEHNE VK C1-CNC TURRET VDI40 DIN5482EXEN SBL500-460v3 TURRET LIOSHING-LS200 VDI40HAAS ST-10Y VDI-TURRET HAAS VDI40HAAS ST-45L HYBRID-TURRET HAAS VDI40SPINNER TC-82MC TURRET VDI40 SPUR-MTWAGNER WDST-780X1200 TURRET VDI40 DIN5482TOPPER TB-25YM TURRET VDI40 SPUR-MTHAAS ST-20Y VDI-TURRET HAAS VDI40HAAS ST-45 HYBRID-TURRET HAAS VDI40TAKAMAZ X-200 TURRET VDI40 DIN1809WAGNER WDST-780X700 TURRET VDI40 DIN5482EXEN SBL600-750v2 TURRET BARUFFALDI VDI40 SPUR-MTHAAS ST-25Y VDI-TURRET HAAS VDI40VDF BOEHRINGER VDF-300T DBL-TURRET RADIAL VDI40HAISHU CNC-350A TURRET VDI40 DIN5480WAGNER WDST-600X600 TURRET VDI40 DIN5482EXCEL SLT-400/1000 TURRET BARUFFALDI-TBMA VDI40 SPUR-MTHAAS ST-25 VDI-TURRET HAAS VDI40HESSAPP DVH-400 TURRET RADIAL VDI40JOHNFORD SL-650CF TURRET TBMR-200 VDI40 SPUR-MTWAGNER WDST-780X1700 TURRET VDI40 DIN5482TOPPER TNL-100ALSB TURRET VDI40 SPUR-MTVDF BOEHRINGER VDF-250T DBL-TURRET RADIAL VDI40HESSAPP DVH-400 DBL-TURRET RADIAL VDI40HAISHU CNC-350T TURRET RADIAL VDI40 DIN5480WAGNER WDST-600X1000 TURRET VDI40 DIN5482TOPPER TNL-120ALS TURRET VDI40 SPUR-MTVDF BOEHRINGER VDF-180T TURRET RADIAL VDI40HESSAPP DVH-300 TURRET RADIAL VDI40HAISHU CNC-450A TURRET VDI40 DIN5480HAAS ST-15 TURRET HAAS HYBRID VDI/BOTMAHO 500T TURRET VDI40 DIN5482HAAS ST-40 HYBRID-TURRET HAAS VDI40VDF BOEHRINGER VDF-250T TRPL-TURRET RADIAL VDI40HESSAPP DVH-200 TURRET RADIAL VDI40HAISHU CNC-450T TURRET VDI40 DIN5480HAAS ST-15 TURRET HAAS VDI40TAKAMAZ XY-2000-PLUS DBL-TURRET TAKAMAZ VDI40 DIN1809HAAS ST-20SS HYBRID-TURRET HAAS VDI40HWACHEON HI-TECH-300MC TURRET VDI40 DIN1809HESSAPP DVT-200 DBL-TURRET RADIAL VDI40
