Home / Swiss Type Tools / MIYANO Swiss type Live Tools / L30000988 / UNIVERSAL DRILLING MILLING HEAD ER16A for MIYANO

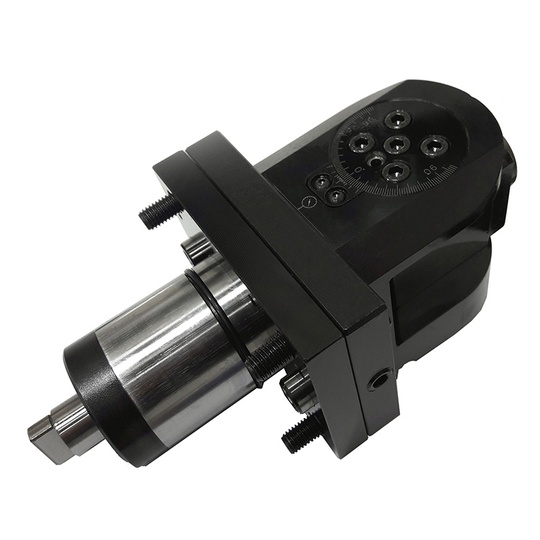

UNIVERSAL DRILLING MILLING HEAD ER16A for MIYANO
UNIVERSAL DRILLING MILLING HEAD ER16A for MIYANO

UNIVERSAL DRILLING MILLING HEAD ER16A for MIYANO

CAD $8,888.73

SKU: IMT300096 Brand: MIYANO

IMT300096 / L30000988

Icons
  • You can buy them securely via PayPal, we also accept Mastercard, Visa and American Express.
  • We ship via UPS.
  • Description
  • Compatible Machines

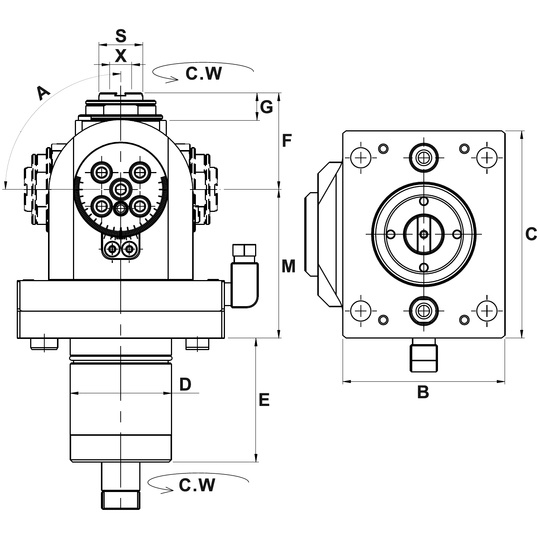

Product Parameters

IMTE No. Part No. D X
Capacity		 S Max.Speed
R.P.M.		 A B C E F G M
IMT300096 ABX-DA45-ER16-BAC-FT 45 1~10 ER16A 20 5000 ±90° 74 92 55 51.9 7.7 55
Unless otherwise specified, all dimensions are in millimeters

For the detailed list of compatible machine models – please click the Compatible Machines tab

POLYGIM DIAMOND-52 DOUBLE-SPINDLE SINGLE-TURRETHARDINGE GS-51MS TURRET BMT45MIYANO ABX-51TH3 DIA.45MIYANO LZ-01RMORI SEIKI CL-2000M TURRET BMT45MIYANO BNE-51SY6 DIA.45MIYANO BNJ-51SY3 DIA.45HARDINGE SUPER-PRECISION T-42 TURRET BMT45MIYANO BND-34SY5 DIA.45MIYANO LZ-02RMIYANO LZ-02R2MIYANO BNJ-34SY3 DIA.45MIYANO BNJ-42SY3 DIA.45HARDINGE GS-51MT TURRET BMT45MIYANO ABX-64TH3 DIA.45SPINNER TD-42 TURRET BMT45MIYANO LZ-01R2MIYANO BNJ-42S2 DIA.45MIYANO BNJ-42SY2 DIA.45HARDINGE GS-42MT TURRET BMT45MIYANO ABX-51SY2 DIA.45SPINNER TD-65 TURRET BMT45MIYANO ABX-51THYMIYANO BNJ-51S3 DIA.45MIYANO BNJ-51SY2 DIA.45HARDINGE GS-42MS TURRET BMT45MIYANO BNJ-34SY2 DIA.45SPINNER TTS-65 TURRET BMT45MORI SEIKI CL-150M TURRET BMT45MIYANO BNE-51S6 DIA.45MIYANO BND-51SY2 DIA.45MIYANO BND-51SYMIYANO BNE-51S5 DIA.45MIYANO BNX-51MYMORI SEIKI CL-1500M TURRET BMT45MIYANO BNJ-34S3 DIA.45POLYGIM DIAMOND-60 DOUBLE-SPINDLE SINGLE-TURRET BMT45MIYANO ABX-64TH TURRET BMT45MIYANO BNE-42SY6 DIA.45MIYANO BNX-51MSYMORI SEIKI CL-153M TURRET BMT45MIYANO BND-51C2MIYANO BNE-51SY5 DIA.45MIYANO BND-51S TURRET BMT45MIYANO BNJ-34S2 DIA.45MIYANO ABX-51SY RADIAL TURRETMIYANO LZ-02RY2DUPLOMATIC DM-TR16 TURRET BMT45 DIN1809MIYANO ABX-51TH TURRET BMT45MIYANO BND-34S5 DIA.45MIYANO ABX-64TH2MIYANO LZ-01RY2MIYANO ABX-64SY2 DIA.45MIYANO BNJ-51SY6MIYANO BNJ-51S2 DIA.45MIYANO ABX-64SYMIYANO ABX-51TH2MIYANO BNE-42S6 DIA.45MIYANO BND-51SMIYANO BNJ-42S3 DIA.45
