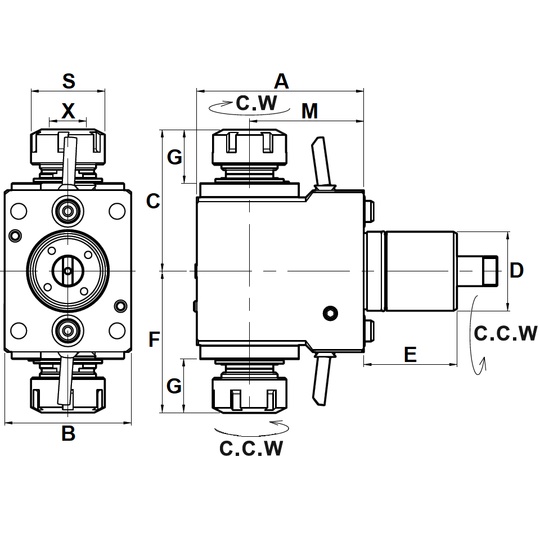

Product Parameters
| IMTE No. | Part No. | D | X Capacity |
S | Maximum R.P.M. |
A | B | C | F | E | G | M | CNC Lathe |
| IMT201114 | ABX-DF45-ER20-65D | 45 | 1~13 ER20 | 35 | 5000 | 95 | 72 | 78.5 | 78.5 | 53 | 28.5 | 65 | MIYANO ABX MIYANO BND MIYANO BNE MIYANO BNJ |
| IMT201115 | ABX-DF45-ER25-65D | 1~16 ER25 | 42 | 95 | 80.5 | 80.5 | 30.5 | 65 | |||||
| IMT201116 | ABX-DF45-ER25-85D | 1~16 ER25 | 42 | 116 | 80.5 | 80.5 | 30.5 | 85 |
For the detailed list of compatible machine models – please click the Compatible Machines tab
