BMT85 DIN1809 RADIAL DRILLING MILLING HEAD ER50 L= 85 mm INTERNAL COOLANT for DAEWOO
BMT85 DIN1809 RADIAL DRILLING MILLING HEAD ER50 L= 85 mm INTERNAL COOLANT for DAEWOO

BMT85 DIN1809 RADIAL DRILLING MILLING HEAD ER50 L= 85 mm INTERNAL COOLANT for DAEWOO

CAD $5,559.00

SKU: IMT100486 Brand: , , , , , , , , , , ,

IMT100486 / L30000370

Product Parameters

Tool Holder Turret Interface:

  • Turret: RADIAL
  • Tooling Interface: BMT-85
  • Power Coupling: DIN1809

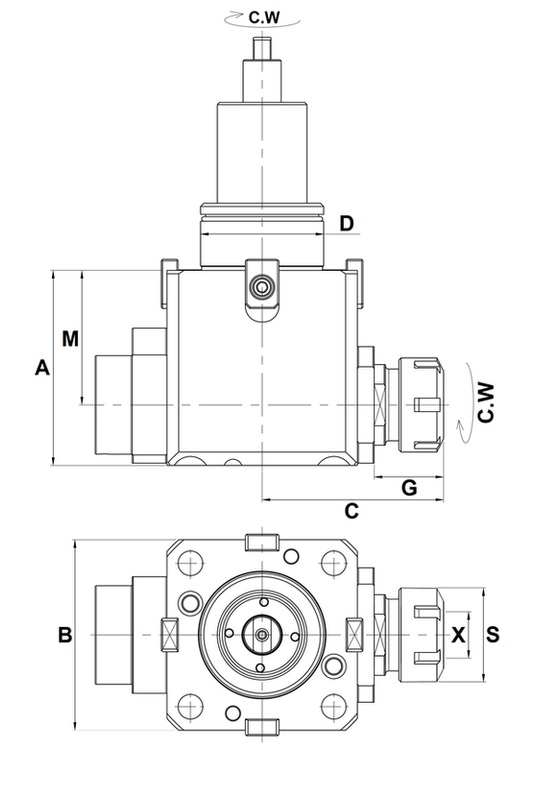

IMTE No. Part No. D X
Capacity		 S Rotation
Max.speed
(R.P.M.)		 A B C G M Bolt
pattern
IMT100485 DW700-DF85-ER50-85 85 10~34 ER50 78 5000 136 125 138 56 85 100×100
IMT100486 DW700-DF85-ER50-85-CTS *
IMT100487 DW700-DF85-ER50-110 161 125 138 56 110 100×100
IMT100488 DW700-DF85-ER50-110-CTS

* CTS – Coolant-Through Spindle

For the detailed list of compatible machine models – please click the Compatible Machines tab
