Home / Tool Holders Driven (Live Tooling) / VDI Radial Drilling-Milling Head / DMHN-1809-FR / VDI40 DIN1809 RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=100 mm CW-CW
VDI40 DIN1809 RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=100 mm CW-CW
VDI40 DIN1809 RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=100 mm CW-CW

VDI40 DIN1809 RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=100 mm CW-CW

CAD $3,169.00

SKU: IMT101079 Brand: TONGTAI

IMT101079 / L30000975

Icons
  • You can buy them securely via PayPal, we also accept Mastercard, Visa and American Express.
  • We ship via UPS.
  • Description
  • Compatible Machines

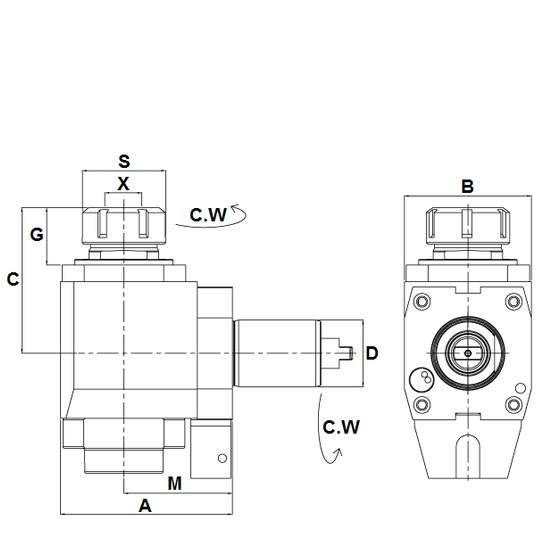

Product Parameters

IMTE No. Part No. D
DIN 69880		 X
ER Capacity		 S Maximum
R.P.M.		 Gear
Ratio		 A B C G M
IMT101077 N*-FR40-1809-ER32-65 40 2~20 ER32 50 5000 1 : 1 99 80 85 34 65
IMT101078 N-FR40-1809-ER32-85 121 80 85 34 85
IMT101079 N-FR40-1809-ER32-100 134 80 85 34 100
IMT101080 N-FR40-1809-ER32-120 158 80 95.5 37 120
IMT101081 N-FR50-1809-ER40-75 50 3~26 ER40 63 5000 1 : 1 115 88 103 40 75
IMT101082 N-FR60-1809-ER50-106 60 10~34 ER50 78 5000 1 : 1 156 104 139 56.5 106
* N – Clockwise Input to Clockwise Output Rotation

For the detailed list of compatible machine models – please click the Compatible Machines tab

MORI SEIKI MT-2500EMAG VSC-200 TURRET RADIAL EMAG VDI40 DIN1809YCM GT-250MB TURRET YCM VDI40 DIN1809MORI SEIKI ZL-25M DBL-TURRET VDI40 DIN1809SUGA AT-25PT TURRET VDI40 DIN1809HITACHI SEIKI HT-200 TURRET VDI40 DIN1809DOOSAN MECATEC SN-400M TURRET VDI40 DIN1809LEADWELL LTC-25i TURRET DUPLOMATIC VDI40CHIN-HUNG CL-38 TURRET VDI40 DIN1809AEGIS FTC-30L TURRET RADIAL VDI40MORI SEIKI MT-2000SZNAKAMURA TOME WT-250 TURRET VDI40 DIN1809VICTOR VTURN-26-60CV 12-TLS TURRET VDI40 DIN1809EMCO EMCOMAT E-400 TURRET VDI40 DIN1809AEGIS FTC-26LMY TURRET VDI40 DIN1809CINCINNATI HAWK-200 TURRET DUPLOMATIC VDI40 DIN1809EMAG VSC-250 TURRET RADIAL EMAG VDI40 DIN1809YCM GT-250MA TURRET YCM VDI40 DIN1809LEADWELL LTC-25SM TURRET DUPLOMATIC VDI40CNC-TAKANG TNC-75 TURRET VDI40 DIN1809HITACHI SEIKI HT-250 TURRET VDI40 DIN1809DUPLOMATIC TURRET PIN63 VDI40 DIN1809LEADWELL LTC-25iL TURRET DUPLOMATIC VDI40LEADWELL T-7iSM TURRET RADIAL DUPLOMATIC VDI40 DIN1809AEGIS FTC-26L TURRET VDI40MORI SEIKI ZL-25MC DBL-TURRET VDI40 DIN1809ROMI GALAXY-30M TURRET VDI40 DIN1809BIGLIA B-200 TURRET DUPLOMATIC VDI40 DIN1809ERNAULT TOYODA HES-32 TURRET VDI40 DIN1809AEGIS FTC-30LM TURRET VDI40 DIN1809DOOSAN MECATEC V-450M TURRET VDI40 DIN1809EMCO EMCOTURN ET-500MC TURRET AXIAL DUPLOMATIC VDI40 DIN1809YCM GT-300LMA TURRET YCM VDI40 DIN1809YCM NT-2000Y TURRET EWS VDI40 DIN1809WAGNER WDS-560A TURRET VDI40 DIN1809HITACHI SEIKI HT-25G TURRET VDI40 DIN1809DUPLOMATIC TURRET PIN70 VDI40 DIN1809LEADWELL LTC-25iM TURRET DUPLOMATIC VDI40KIA SUPER KIA TURN SKT-21VM TURRET VDI40 DIN1809AEGIS FTC-30B TURRET RADIAL VDI40LEADWELL T-7M TURRET AXIAL DEX VDI40 DIN1809TAKAMAZ XY-2000-PLUS DBL-TURRET TAKAMAZ VDI40 DIN1809HWACHEON HI-TECH-300MC TURRET VDI40 DIN1809DAEWOO PUMA-250MSB TURRET VDI40 DIN1809AEGIS FTC-26BMY TURRET VDI40 DIN1809DOOSAN MECATEC V-450TM TURRET VDI40 DIN1809FORTUNE VTURN II-26CV TURRET AXIAL DUPLOMATIC VDI40 DIN1809YCM GT-300LMB TURRET YCM VDI40 DIN1809YCM NT-2500Y TURRET EWS VDI40 DIN1809TOPPER TB-25YMBC TURRET VDI40 DIN1809HITACHI SEIKI HT-25R TURRET VDI40 DIN1809EMAG VTC-250 TURRET VDI40 DIN1809LEADWELL LTC-25iLM TURRET VDI40 DIN1809NAKAMURA TOME WT-150 TURRET VDI40 DIN1809AEGIS FTC-15MY TURRET VDI40 DIN1809TAKISAWA TMM-250 MODULE3 TURRET DUPLOMATIC VDI40 DIN1809TAKISAWA TMM-200 TURRET DUPLOMATIC VDI40 DIN1809NAKAMURA TOME SUPER-NTJ TURRET VDI40 DIN1809DAEWOO PUMA-250MA TURRET VDI40 DIN1809AEGIS FTC-30BMY TURRET VDI40 DIN1809EMAG VL-3 TURRET RADIAL EMAG VDI40 DIN1809FORTUNE VTURN II-23CV TURRET AXIAL DUPLOMATIC VDI40 DIN1809YCM GT-300MA TURRET YCM VDI40 DIN1809BATLIBOI SPRINT-25TC TURRET VDI40 DIN1809VOEST-ALPINE WNC-300S TURRET VDI40 DIN1809HITACHI SEIKI HT-30G TURRET VDI40 DIN1809FOCUS FCL-300MC TURRET VDI40 DIN1809LEADWELL LTC-25SMY TURRET DUPLOMATIC VDI40SPINNER TTC-600-65 DOUBLE TURRET VDI40 / BMT45AEGIS FTC-23BMY TURRET VDI40 DIN1809VICTOR VTURN-26CV TURRET DUPLOMATIC VDI40 DIN1809TAKISAWA TMM-250 MODULE1 TURRET VDI40 DIN1809LITZ LT-520M TURRET DUPLOMATIC VDI40 DIN1809MATRIX CHURCHILL OMEGA-65 TURRET AXIAL DUPLOMATIC VDI40 DIN1809AEGIS FTC-30LMY TURRET VDI40 DIN1809EMAG VL-5 TURRET RADIAL EMAG VDI40 DIN1809NAKAMURA TOME SC-250 TURRET VDI40 DIN1809KIA SUPER KIA TURN SKT-28LM TURRET VDI40 DIN1809ALEX-TECH VT-28 TURRET VDI40 DIN1809LEADWELL T-7iM TURRET AXIAL DUPLOMATIC VDI40 DIN1809HITACHI SEIKI CS-30 TURRET VDI40 DIN1809FORTUNE VTURN-26CV TURRET DUPLOMATIC VDI40 DIN1809FEELER FTC-450MC TURRET VDI40DUPLOMATIC DM-TR20 TURRET VDI40 DIN1809AEGIS FTC-23BM TURRET VDI40 DIN1809CINCINNATI HAWK-250 TURRET DUPLOMATIC VDI40 DIN1809TAKISAWA TNR-200C TURRET VDI40 DIN1809LITZ LT-400M TURRET DUPLOMATIC VDI40 DIN1809ERNAULT TOYODA HES-42 TURRET VDI40 DIN1809TONGTAI TD-2500YBC VDI40 12 TOOLSHITACHI SEIKI CS-20 TURRET VDI40 DIN1809VICTOR VTURN II-23CV TURRET DUPLOMATIC VDI40 DIN1809LEADWELL T-8XL TURRET DEX VDI40ALEX-TECH VT-28BL TURRET VDI40 DIN1809NAKAMURA TOME TMC-30 TURRET VDI40 DIN1809HITACHI SEIKI FT-25 TURRET VDI40 DIN1809HYUNDAI HIT-250S TURRET DUPLOMATIC VDI40 DIN1809VICTOR VTURN II-26CV TURRET DUPLOMATIC VDI40 DIN1809TAKAMAZ SIGMA X-200SMC TURRET RADIAL VDI40 DIN1809AEGIS FTC-23LMY TURRET VDI40 DIN1809HARDINGE TALENT 10/78 TURRET RADIAL VDI40 DIN1809BIGLIA B-111 TURRET DUPLOMATIC VDI40 DIN1809TAKISAWA TNR-200CS TURRET VDI40 DIN1809ROMI GL-280M TURRET DUPLOMATIC AXIAL VDI40 DIN1809DAEWOO PUMA-250MSA TURRET VDI40 DIN1809HITACHI SEIKI CS-25 TURRET VDI40 DIN1809HWACHEON HI-TECH-250 TURRET VDI40 DIN1809LEADWELL T-8XLM TURRET DEX VDI40 DIN1809CHEVALIER FCL-1028MC TURRET DUPLOMATIC VDI40 DIN1809NAKAMURA TOME TMC-35 TURRET VDI40 DIN1809HITACHI SEIKI TF-25 TURRET VDI40 DIN1809HYUNDAI HIT-250SY TURRET VDI40 DIN1809VICTOR VTURN-26-60CV 10-TLS TURRET VDI40 DIN1809TAKAMAZ X-200 TURRET VDI40 DIN1809AEGIS FTC-26LM TURRET VDI40 DIN1809DUPLOMATIC TURRET VDI40 DIN1809CINCINNATI HAWK-HTC-200M TURRET AXIAL DUPLOMATIC VDI40 DIN1809TAKISAWA TNR-200Y TURRET VDI40 DIN1809HWACHEON HI-TECH-400MC TURRET VDI40 DIN1809DAEWOO PUMA-250MB TURRET VDI40 DIN1809HITACHI SEIKI HICELL HC-23S TURRET VDI40 DIN1809BIGLIA B-56 TURRET DUPLOMATIC VDI40 DIN1809LEADWELL T-8M TURRET DUPLOMATIC AXIAL VDI40 DIN1809CNC-TAKANG TNC-2000DST TURRET VDI40 DIN1809AEGIS FTC-26B TURRET VDI40HYUNDAI HIT-20M TURRET DUPLOMATIC VDI40 DIN1809LEADWELL T-8M TURRET DEX AXIAL VDI40 DIN1809VICTOR VTURN-26-110CV 10-TLS TURRET VDI40 DIN1809BIGLIA B-131 TURRET VDI40 DIN1809AEGIS FTC-26BM TURRET VDI40 DIN1809HARDINGE QUEST 10/65 TURRET AXIAL VDI40 DIN1809CINCINNATI HAWK-HTC-250M TURRET AXIAL DUPLOMATIC VDI40 DIN1809TAKISAWA TNR-200YS TURRET VDI40 DIN1809LEADWELL T-7iM TURRET RADIAL DUPLOMATIC VDI40 DIN1809EMCO EMCOMAT E-480 TURRET VDI40 DIN1809HITACHI SEIKI HT-20S TURRET VDI40 DIN1809DAEWOO PUMA-250M TURRET DUPLOMATIC VDI40 DIN1809LEADWELL T-8SM TURRET DUPLOMATIC RADIAL VDI40 DIN1809CHIN-HUNG CL-260 TURRET VDI40 DIN1809AEGIS FTC-15M TURRET VDI40 DIN1809HYUNDAI HIT-200M TURRET DUPLOMATIC VDI40 DIN1809MORI SEIKI MT-2500SZVICTOR VTURN-26-110CV 12-TLS TURRET VDI40 DIN1809ACCUWAY UT-300M TURRET VDI40 DIN1809AEGIS FTC-23LM TURRET VDI40 DIN1809DUGARD 300MC TURRET VDI40 DIN1809EMAG VSC-160 TURRET RADIAL EMAG VDI40 DIN1809TOPPER TB-25YMBL TURRET DUPLOMATIC VDI40 DIN1809MORI SEIKI SL-25M DBL-TURRET VDI40 DIN1809EMCO EMCOTURN ET-500 TURRET VDI40 DIN1809HITACHI SEIKI HT-23R TURRET VDI40 DIN1809DAEWOO PUMA-250MS TURRET VDI40 DIN1809LEADWELL LTC-20iM TURRET DUPLOMATIC RADIAL VDI40 DIN1809CNC-TAKANG TNC-30N TURRET VDI40 DIN1809AEGIS FTC-23L TURRET VDI40HYUNDAI HIT-250M TURRET DUPLOMATIC AXIAL VDI40 DIN1809MORI SEIKI SL-25MC DBL-TURRET VDI40 DIN1809VICTOR VTURN-20-60CV TURRET VDI40 DIN1809ACCUWAY UT-300LM TURRET VDI40 DIN1809AEGIS FTC-30BM TURRET VDI40 DIN1809
